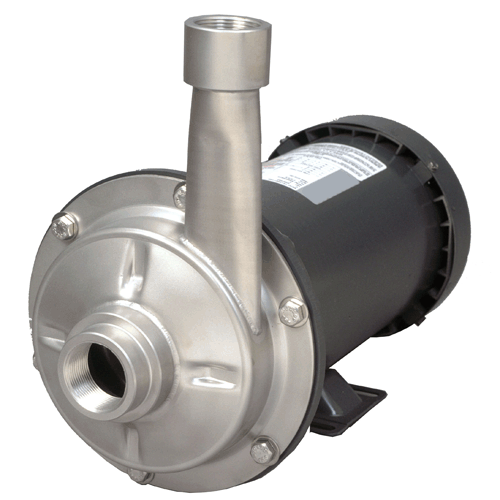

AMT Pumps 5491-98 High Volume SS Straight Centrifugal Pump (2 HP, 1 PH, 115/230V)
AMT Pumps 5491-98 High Volume SS Straight Centrifugal Pump (2 HP, 1 PH, 115/230V)
SKU:5491-98
Regular price
$648.70 USD
Regular price
$999.00 USD
Sale price
$648.70 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 5491-98, High Volume Stainless Steel Straight Centrifugal Pumps,2 HP, 1 PH, TEFC,115/230 V, 2" NPT SUC,1- 1/2" NPT DIS
| Applications | |
| AMT Stainless Steel Solids Handling End Suction Centrifugal pumps are designed for continuous duty high flow and high pressure applications including: chemical processing, liquid transfer, cooling, pressure boosting, circulating, dirty water and applications requiring contaminant free pumping. Constructed of rugged deep drawn stainless steel for durability and corrosion resistance. Investment cast stainless steel closed impeller for enhanced performance, high efficiencies and handles a maximum of 1/8" diameter solids. | |
| Features | |
| Stainless Steel Construction | |
| Viton Mechanical Seal and O-ring, Optional Buna-N Seal and O-ring Available | |
| Investment Cast Stainless Steel Impeller | |
| Cast Iron Motor Adapter Provides Rigid Mounting | |
| AeroSpace Fusion Welding | |
| Stainless Steel Motor Shaft & Hardware | |
| 1/2 to 3 HP NEMA 56J TEFC Single & Three Phase Motors | |
| NEMA Base Mounted Motors | |
| Maximum Working Pressure 150 PSI | |
| Maximum Temperature 200 F | |
| QSP - Quick Ship Pump for Many Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
5491-98 |
Type |
Centrifugal Pumps |
Series |
High Volume Stainless Steel Straight Centrifugal Pumps |
HP |
2 |
Phase |
1 |
Enclosure |
TEFC |
Voltage |
115/230 |
Full Load Amps |
22/11 |
Suction |
2" NPT |
Discharge |
1-1/2" NPT |
L |
14.9" [37.8] |
W |
10.6" [26.9] |
H |
7.8" [14.6] |
Ship Wt. (Lbs.) |
51 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
