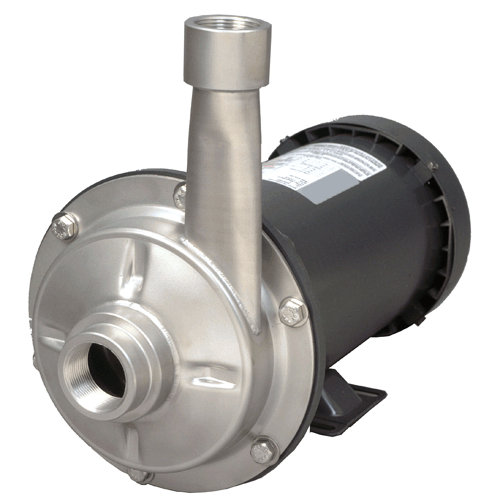

5485-98 AMT High Volume Stainless Steel Straight Centrifugal Pump (1.5 HP, 1 Phase, 115/230 Volt, Viton Seal, 56J Frame, TEFC Enclosure)
5485-98 AMT High Volume Stainless Steel Straight Centrifugal Pump (1.5 HP, 1 Phase, 115/230 Volt, Viton Seal, 56J Frame, TEFC Enclosure)
[COUNT] shoppers are looking at this right now
No reviews
SKU:5485-98
Regular price
$675.33 USD
Regular price
$1,013.00 USD
Sale price
$675.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 5485-98, High Volume Stainless Steel Straight Centrifugal Pumps,1.5 HP, 1 PH, TEFC,115/230 V, 1 1/2" NPT SUC, 1 1/4" NPT DIS
| Applications | |
| AMT Stainless Steel Solids Handling End Suction Centrifugal pumps are designed for continuous duty high flow and high pressure applications including: chemical processing, liquid transfer, cooling, pressure boosting, circulating, dirty water and applications requiring contaminant free pumping. Constructed of rugged deep drawn stainless steel for durability and corrosion resistance. Investment cast stainless steel closed impeller for enhanced performance, high efficiencies and handles a maximum of 1/8" diameter solids. | |
| Features | |
| Stainless Steel Construction | |
| Viton Mechanical Seal and O-ring, Optional Buna-N Seal and O-ring Available | |
| Investment Cast Stainless Steel Impeller | |
| Cast Iron Motor Adapter Provides Rigid Mounting | |
| AeroSpace Fusion Welding | |
| Stainless Steel Motor Shaft & Hardware | |
| 1/2 to 3 HP NEMA 56J TEFC Single & Three Phase Motors | |
| NEMA Base Mounted Motors | |
| Maximum Working Pressure 150 PSI | |
| Maximum Temperature 200 F | |
| QSP - Quick Ship Pump for Many Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
5485-98 |
Type |
Centrifugal Pumps |
Series |
High Volume Stainless Steel Straight Centrifugal Pumps |
HP |
1.5 |
Phase |
1 |
Enclosure |
TEFC |
Voltage |
115/230 |
Full Load Amps |
18/9 |
Suction |
1-1/2" NPT |
Discharge |
1-1/4" NPT |
L |
14.1" [35.8] |
W |
10.6" [26.9] |
H |
7.8" [14.6] |
Ship Wt. (Lbs.) |
49 |
Warranty |
1 Year |
Notes |
See Support Documents |
