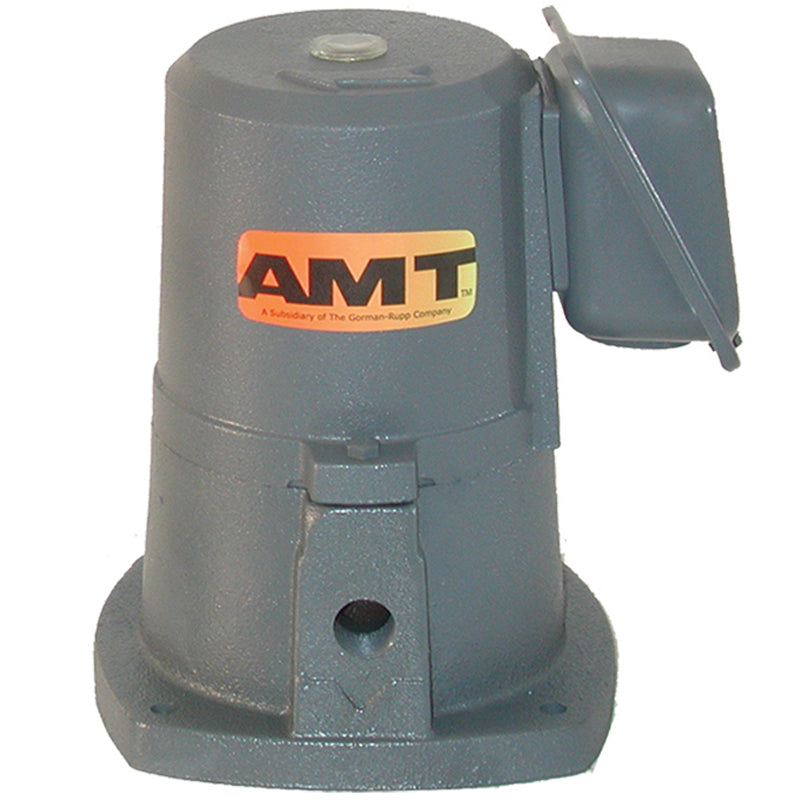

AMT Pumps 5360-95 Suction Coolant / Oil Pump (1/2 HP, 230/460V, 3 Phase, 3/4" NPT (Suction and Discharge)
AMT Pumps 5360-95 Suction Coolant / Oil Pump (1/2 HP, 230/460V, 3 Phase, 3/4" NPT (Suction and Discharge)
SKU:5360-95
Regular price
$570.78 USD
Regular price
$879.00 USD
Sale price
$570.78 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 5360-95, Interchangeable Immersion & Suction Coolant/Oil Pumps,SUC,1/2 HP, 230/460 V
| Applications | |
| AMT Interchangeable Coolant/Oil pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 & 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 50/60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM. Pumps feature semi-open impellers that are ideal for handling some solids and fine contaminants. | |
| Features | |
| Immersion Type Features | Carbon/Ceramic Shaft Seal |
| Cast Iron Construction | Self-Priming up to 2' - Maximum Suction Lift |
| Stainless Steel Impeller | Pumps Must be Mounted Above Liquid |
| Carbon Steel Shaft | |
| Sealless Design for Pumping Abrasives | |
| Pumps Liquids Down to 2" | |
| Ideally Suited for Pumping Fine Contaminants | |
| Suction Type Features | |
| Cast Iron Construction | |
| Stainless Steel Impeller | |
| Carbon Steel Shaft | |
Specifications | |
Brand |
AMT |
Catalog Number |
5360-95 |
Type |
Coolant/Oil Pumps |
Series |
Interchangeable Immersion & Suction Coolant/Oil Pumps |
Curve |
C |
Type |
Suction |
HP |
1/2 |
Phase |
3 |
Voltage |
230/460 |
Full Load Amps |
1.8/1.25 |
Ship Wt. (Lbs.) |
37 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
