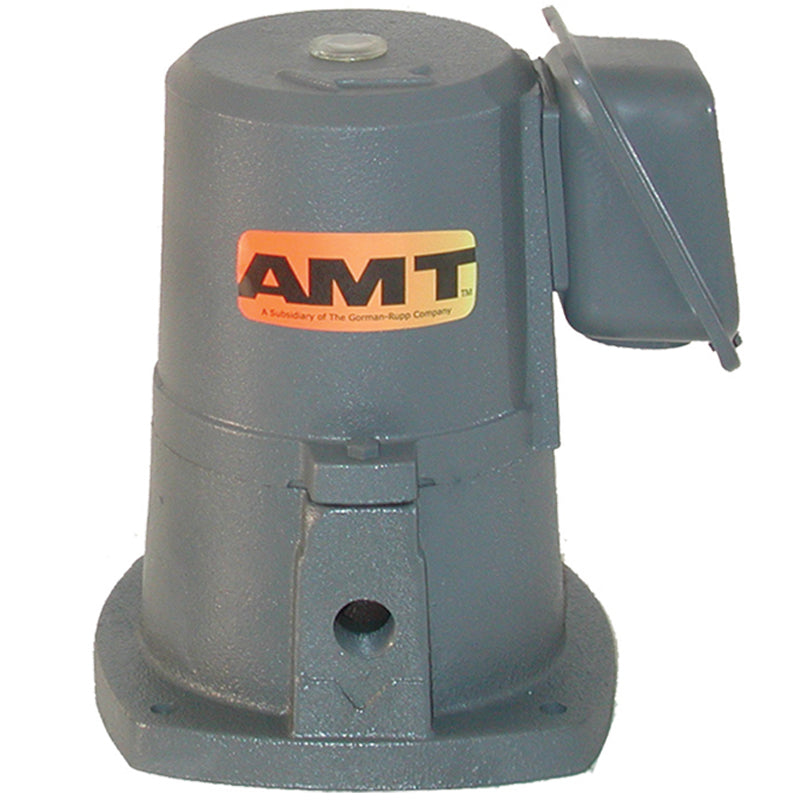

AMT Pumps 5340-95 Suction Coolant / Oil Pump (1/8 HP, 115/230V, 1 Phase, 19/50" NPT (Suction and Discharge)

Name: AMT Pumps 5340-95 Suction Coolant / Oil Pump (1/8 HP, 115/230V, 1 Phase, 19/50" NPT (Suction and Discharge)
Brand: AMT
SKU: 5340-95
Price: 221.43 USD
Availability: InStock

SKU:5340-95

$221.43 USD

~~$341.00 USD~~ $221.43 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

AMT 5340-95, Interchangeable Immersion & Suction Coolant/Oil Pumps,SUC,1/8 HP, 115/230 V

Applications

AMT Interchangeable Coolant/Oil pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 & 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 50/60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM. Pumps feature semi-open impellers that are ideal for handling some solids and fine contaminants.

Features

Carbon/Ceramic Shaft Seal

Self-Priming up to 2' - Maximum Suction Lift

Pumps Must be Mounted Above Liquid

Suction Type Features

Cast Iron Construction

Stainless Steel Impeller

Carbon Steel Shaft

Specifications
Brand	AMT
Catalog Number	5340-95
Type	Coolant/Oil Pumps
Series	Interchangeable Immersion & Suction Coolant/Oil Pumps
Curve	A
Type	Suction
HP	1/8
Phase	1
Voltage	115/230
Full Load Amps	0.7/0.35
Ship Wt. (Lbs.)	14
Warranty	1 Year
Notes	See Support Documents

Support Documents (pdf)

Notes

Questions about this product? Contact our team!
Product images may be generic.

View full details
