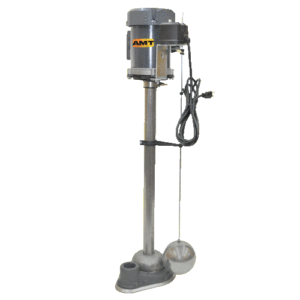

AMT Pumps 523F-98 Commercial SS Sump Pump (3/4 HP, 1 PHASE, TEFC, 115V, 1-1/2" Discharge, 12 FLA, 56C Frame)
AMT Pumps 523F-98 Commercial SS Sump Pump (3/4 HP, 1 PHASE, TEFC, 115V, 1-1/2" Discharge, 12 FLA, 56C Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:523F-98
Regular price
$782.00 USD
Regular price
$1,173.00 USD
Sale price
$782.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 523F-98, Industrial/Commercial Sump Pumps,3/4 HP, 1 PHASE, TEFC,115 V, Stainless, Carbon BEARING
| Applications | |
| The AMT line of Industrial/Commercial Sump pumps is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump pumps are available in stainless steel, bronze and cast iron constructions with TEFC motors in 1/3 through 3/4 HP for proper pump selection in most applications. All models include stainless steel shaft, screen and float. All motors are fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. Pumps require minimum sump pit of 14" diameter and 24" depth. | |
| Features | |
| Stainless Steel Screen and Float | QSP - Quick Ship Pumps |
| Semi-Open, Clog Resistant Impellers | |
| 1/3, 1/2 or 3/4 HP TEFC 115 VAC Single Phase 56C Frame Motors | |
| 8Ft. 16/3 115 VAC Line Cord | |
| Maximum Head 30 ft. | |
| Maximum Flow 103 GPM | |
| Stainless Steel Shaft | |
| Carbon Bearings | |
| 29" to 44" Column Height | |
| Maximum Temperature 200 F | |
| Solids Handling Design up to 3/4" Diameter (25% Maximum Solids) | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
523F-98
|
|
Type
|
Sump Pumps
|
|
Series
|
Industrial/Commercial Sump Pumps
|
|
HP
|
3/4
|
|
PHASE
|
1
|
|
TYPE
|
TEFC
|
|
COLUMN HEIGHT (inch)
|
29
|
|
V
|
115
|
|
MATERIAL
|
Stainless
|
|
BEARING
|
Carbon
|
|
FULL LOAD AMP
|
9/5
|
|
SHIP WT (Lbs.)
|
40
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
