AMT

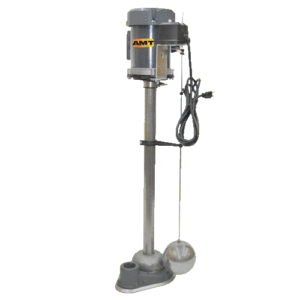

523D-98 AMT Commercial Stainless Steel Sump Pump (41" Column Height, 1/2 HP, 1 PHASE, TEFC, 115 Volt, 1-1/2" Discharge, 9 FLA, 56C Frame)
523D-98 AMT Commercial Stainless Steel Sump Pump (41" Column Height, 1/2 HP, 1 PHASE, TEFC, 115 Volt, 1-1/2" Discharge, 9 FLA, 56C Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:523D-98
Regular price
$788.00 USD
Regular price
$1,182.00 USD
Sale price
$788.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 523D-98, Industrial/Commercial Sump Pumps,1/2 HP, 1 PHASE, TEFC,115 V, Stainless,Carbon BEARING
| Applications | |
| The AMT line of Industrial/Commercial Sump pumps is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump pumps are available in stainless steel, bronze and cast iron constructions with TEFC motors in 1/3 through 3/4 HP for proper pump selection in most applications. All models include stainless steel shaft, screen and float. All motors are fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. Pumps require minimum sump pit of 14" diameter and 24" depth. | |
| Features | |
| Stainless Steel Screen and Float | QSP - Quick Ship Pumps |
| Semi-Open, Clog Resistant Impellers | |
| 1/3, 1/2 or 3/4 HP TEFC 115 VAC Single Phase 56C Frame Motors | |
| 8Ft. 16/3 115 VAC Line Cord | |
| Maximum Head 30 ft. | |
| Maximum Flow 103 GPM | |
| Stainless Steel Shaft | |
| Carbon Bearings | |
| 29" to 44" Column Height | |
| Maximum Temperature 200 F | |
| Solids Handling Design up to 3/4" Diameter (25% Maximum Solids) | |
Specifications | |
Brand |
AMT |
Catalog Number |
523D-98 |
Type |
Sump Pumps |
Series |
Industrial/Commercial Sump Pumps |
HP |
1/2 |
PHASE |
1 |
TYPE |
TEFC |
COLUMN HEIGHT (inch) |
41 |
V |
115 |
MATERIAL |
Stainless |
BEARING |
Carbon |
FULL LOAD AMP |
9/5 |
SHIP WT (Lbs.) |
41 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
