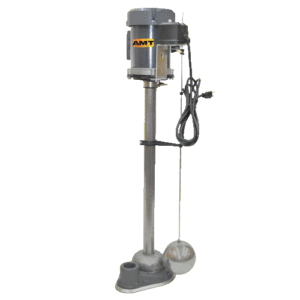

AMT Pumps 523C-98 Commercial SS Sump Pump (1/2 HP, 1 Phase, TEFC, 115V)

AMT Pumps 523C-98 Commercial SS Sump Pump (1/2 HP, 1 Phase, TEFC, 115V)

523C-98

$666.88 USD
$1,027.00 USD $666.88 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 523C-98, Industrial/Commercial Sump Pumps,1/2 HP, 1 PHASE, TEFC,115 V, Stainless,Carbon BEARING
Applications
The AMT line of Industrial/Commercial Sump pumps is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump pumps are available in stainless steel, bronze and cast iron constructions with TEFC motors in 1/3 through 3/4 HP for proper pump selection in most applications. All models include stainless steel shaft, screen and float. All motors are fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. Pumps require minimum sump pit of 14" diameter and 24" depth.
Features
Stainless Steel Screen and Float
Semi-Open, Clog Resistant Impellers
1/3, 1/2 or 3/4 HP TEFC 115 VAC Single Phase 56C Frame Motors
8Ft. 16/3 115 VAC Line Cord
Maximum Head 30 ft.
Maximum Flow 103 GPM
Stainless Steel Shaft
Carbon Bearings
29" to 44" Column Height
Maximum Temperature 200 F
Solids Handling Design up to 3/4" Diameter (25% Maximum Solids)

Specifications

Brand
AMT
Catalog Number
523C-98
Type
Sump Pumps
Series
Industrial/Commercial Sump Pumps
HP
1/2
PHASE
1
TYPE
TEFC
COLUMN HEIGHT (inch)
29
V
115
MATERIAL
Stainless
BEARING
Carbon
FULL LOAD AMP
9/5
SHIP WT (Lbs.)
39
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
