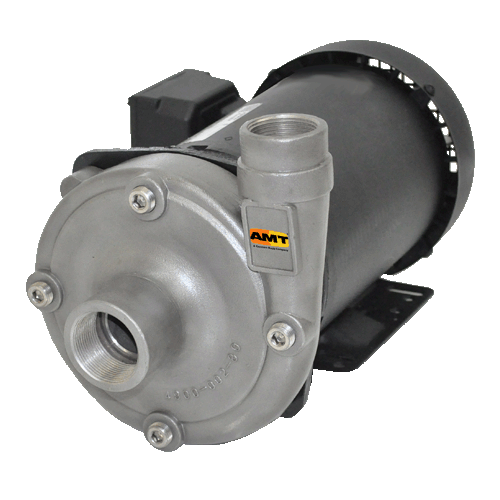

AMT Pumps 489C-98 High Head Straight SS Centrifugal Pump (3/4 HP, 115/230V, Single Phase)

AMT Pumps 489C-98 High Head Straight SS Centrifugal Pump (3/4 HP, 115/230V, Single Phase)

489C-98

$797.40 USD
$1,228.00 USD $797.40 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 489C-98, High Head Straight Centrifugal Pumps, Stainless Steel Series, 3/4 HP, TEFC,56J FRAME, 115/230 V, 1 PHASE, Stainless Steel,Viton/SS,Stainless Steel IMPELLER
Applications
AMT High Head End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling, sprinkler/fire protection systems and pressure boosting.
Features
Stainless Steel, Bronze and Cast Iron Construction
Buna-N or Viton Mechanical Seal and O-ring, Depending on Model
Optional Silicon Carbide Mechanical Seals Available
Stainless Steel Motor Shaft and Hardware
NEMA TEFC Single or Three Phase 3450 RPM Motors, Optional ODP Motors Available
NEMA Base Mounted Motor
High Efficiency Closed Stainless Steel Impeller
Discharge Rotates in 90 Increments
Maximum Working Pressure 150 PSI
Maximum Temperature:Viton: 200 F, Buna-N: 180 F
(4) Front Drain Plugs, Located 90 Apart

Specifications

Brand
AMT
Catalog Number
489C-98
Type
High Head Straight Centrifugal Pumps
Series
High Head Straight Centrifugal Pumps, Stainless Steel
HP
3/4
TYPE
TEFC
FRAME
56J
VAC/60 Hz
115/230
PHASE
1
Suction
1-1/4"
Discharge
1"
CASING
Stainless Steel
SHAFT SEAL
Viton/SS
IMPELLER
Stainless Steel
SHIP WT (lbs)
46
Warranty
1 Year
Notes
See Support Documents
