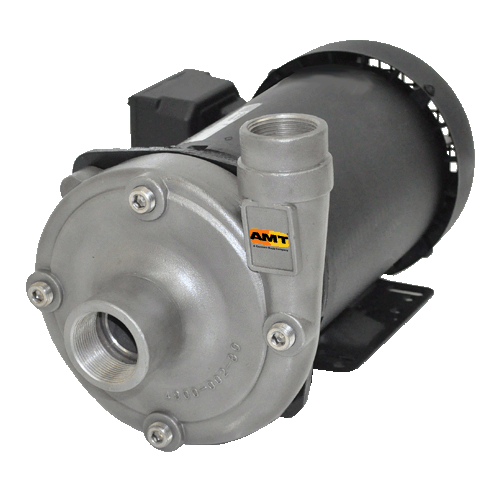

4893-98 AMT Stainless Steel High Head Straight Centrifugal Pump (1/2 HP, 115/230 Volt, Single Phase, Viton®/SS Shaft Seal, ODP)

4893-98 AMT Stainless Steel High Head Straight Centrifugal Pump (1/2 HP, 115/230 Volt, Single Phase, Viton®/SS Shaft Seal, ODP)

[COUNT] shoppers are looking at this right now

4893-98

$845.33 USD
$1,268.00 USD $845.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

AMT 4893-98, High Head Straight Centrifugal Pumps, Stainless Steel Series, 1/2 HP, ODP,56J FRAME, 115/230 V, 1 PHASE, Stainless Steel,Viton/SS,Stainless Steel IMPELLER
Applications
AMT High Head End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling, sprinkler/fire protection systems and pressure boosting.
Features
Stainless Steel, Bronze and Cast Iron Construction
Buna-N or Viton Mechanical Seal and O-ring, Depending on Model
Optional Silicon Carbide Mechanical Seals Available
Stainless Steel Motor Shaft and Hardware
NEMA TEFC Single or Three Phase 3450 RPM Motors, Optional ODP Motors Available
NEMA Base Mounted Motor
High Efficiency Closed Stainless Steel Impeller
Discharge Rotates in 90 Increments
Maximum Working Pressure 150 PSI
Maximum Temperature:Viton: 200 F, Buna-N: 180 F
(4) Front Drain Plugs, Located 90 Apart

Specifications

Brand
AMT
Catalog Number
4893-98
Type
High Head Straight Centrifugal Pumps
Series
High Head Straight Centrifugal Pumps, Stainless Steel
HP
1/2
TYPE
ODP
FRAME
56J
VAC/60 Hz
115/230
Suction
1-1/4"
Discharge
1"
PHASE
1
CASING
Stainless Steel
SHAFT SEAL
Viton/SS
IMPELLER
Stainless Steel
SHIP WT (lbs)
43
Warranty
1 Year
Notes
See Support Documents
