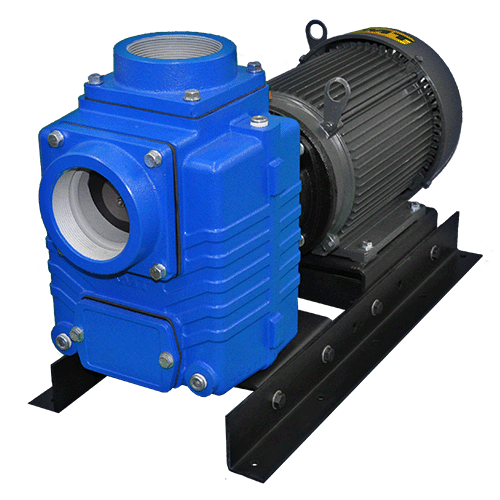

AMT Pumps 4873-95 4" Self Priming Centrifugal Pump (10 HP, 1 PH, 230V, 215JM Frame, Buna-N Seal, 40 FLA)
AMT Pumps 4873-95 4" Self Priming Centrifugal Pump (10 HP, 1 PH, 230V, 215JM Frame, Buna-N Seal, 40 FLA)
SKU:4873-95
Regular price
$2,831.82 USD
Regular price
$4,361.00 USD
Sale price
$2,831.82 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 4873-95, 4" Self Priming Centrifugal Pump Series, 10 HP, 1 PH, 230 Voltage @ 60 HZ, 40 Full Load Amps, 215JM Frame
| Applications | |
| AMT Self-Priming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open stainless steel impeller, which can handle 1/2" diameter semi-solids. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. | |
| Optional Viton Mechanical Seal and Flapper Valve Available. Call for Quotation. | |
| Optional Silicon Carbide Seal Available. Call for Quotation. | |
| Optional Hazardous Duty/Xplosion Proof 10HP, 3 Phase Motors Only; Call for Quotation. | |
| Mounting Base (A200-90) Not Included | |
| Features | |
| Cast Iron Construction with Stainless Steel Impeller | |
| Buna-N Mechanical Seal, Check Valve and O-Ring | |
| 4" NPT Suction and Discharge Ports | |
| Maximum Solids Handling 1/2" | |
| Maximum Temperature 180 F | |
| Self-Priming to 20 Ft. | |
| Self-Cleaning, Semi-Open Impeller | |
Specifications | |
Brand |
AMT |
Catalog Number |
4873-95 |
Type |
Self Priming Centrifugal |
Series |
4" Self Priming Centrifugal Pump |
HP |
10 |
PH |
1 |
Voltage @ 60 HZ |
230 |
Full Load Amps |
40 |
Frame |
215JM |
Suction |
4 |
Discharge |
4 |
Casing |
Cast Iron |
Shaft Seal |
Buna-N/SS |
Base Length |
33.5 |
Base Width |
15 |
Base Height |
16 |
Mounting Base (A200-90) |
Not Included |
Warranty |
1 Year |
