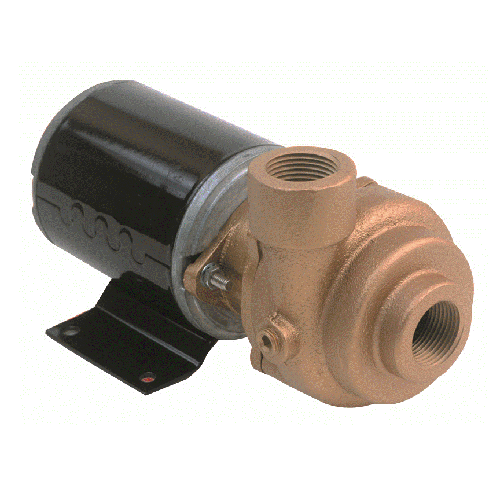

AMT Pumps 4861-97 Bronze Marine Pump (1/12 HP, 12 Volts DC, 3/4" Suction, 3/4" Discharge, TENV, 9 FLA)

AMT Pumps 4861-97 Bronze Marine Pump (1/12 HP, 12 Volts DC, 3/4" Suction, 3/4" Discharge, TENV, 9 FLA)

4861-97

$268.83 USD
$414.00 USD $268.83 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 4860-97, Bronze Marine Pumps,1/8 HP, - PH, TENV ENC, 12.8 V, 3/4" NPT
Applications
The AMT Model 3670-94 Naval Bronze Straight Centrifugal pump is designed for low pressure salt water wash down and recirculating applications. The pump has been sized for salt water (1.03 specific gravity) and feature provisions for the installation of a seal wash, front drain plug and pullfrom-rear design. The unit is driven by a 1/8 HP capacitor start induction motor (TEFC) with ball bearings and a stainless steel shaft. On/off switch and line cord are standard.
Features
Bronze Construction
Buna-N Mechanical Seal and O-ring
Maximum Temperature 180 F
Self-cleaning, Semi-open Impeller
Totally Enclosed Motors

Specifications

Brand
AMT
Catalog Number
4861-97 (Replaced 4860-97)
Type
Marine Pumps
Series
Bronze Marine Pumps
Curve
A
HP
1/12
Phase
-
RPM
3700
Enclosure
TENV
Voltage
12 V-DC
Full Load Amps
9
Suction
3/4" NPT
Discharge
3/4" NPT
Length
7.6"
Width
3.3"
Height
4.0"
Ship Wt. (Lbs.)
7
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
