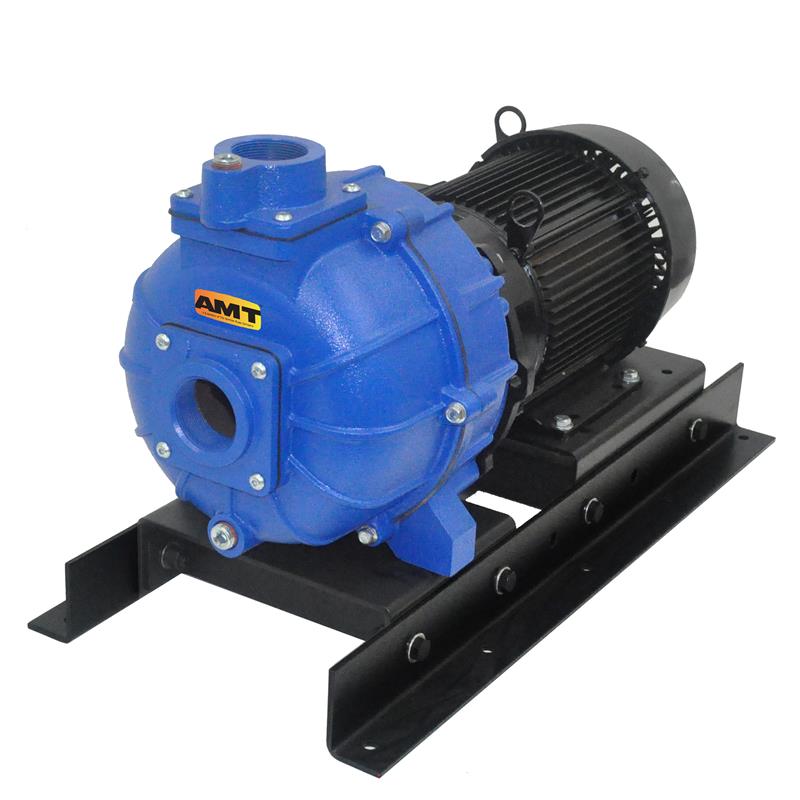

4805-95 AMT 2" Cast Iron Self-Priming High Pressure Pump (10 HP, 1 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 230V)
4805-95 AMT 2" Cast Iron Self-Priming High Pressure Pump (10 HP, 1 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 230V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:4805-95
Regular price
$3,198.67 USD
Regular price
$4,798.00 USD
Sale price
$3,198.67 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 4805-95, 2" Self-Priming High Pressure Pump, 10 HP, 1 Phase, 2" Discharge, Cast Iron Material,
| Applications | |
| AMT 2 Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors. | |
| Features | |
| Cast Iron Construction with Dual Closed Vane Aluminum Impellers | |
| Viton Mechanical Seal w/ Silicon Carbide and Carbon Faces | |
| Built in EPR/EDPM Check Valve permits Self-Priming up to 20 Ft. | |
| Closed Vane Aluminum Impeller design for High Pressure Performance | |
| Fill and Drain Plugs for Easy Installation and Servicing | |
| 2 NPT Suction and Discharge Ports | |
| Maximum Temperature 180 F | |
| Maximum Working Pressure 150 PSI | |
| Optional Mounting Base Available (A200-90) available on all models | |
| Hazardous Duty/Xplosion Proof Motors Available; Call for Quote and Lead Time | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
4805-95
|
|
Type
|
2" Self-Priming High Pressure Pump
|
|
HP
|
10
|
|
Phase
|
1
|
|
Suction
|
2"
|
|
Discharge
|
2"
|
|
Type
|
TEFC
|
|
Frame
|
215JM
|
|
VAC/60 Hz
|
230
|
|
Material
|
Cast Iron
|
|
Seal
|
Viton/Sil/Car
|
|
Full Load Amp
|
40
|
|
Ship WT (lbs)
|
305
|
|
Self-Priming
|
to 20'
|
|
Max Head
|
270 ft
|
|
Max PSI
|
116
|
|
Max GPM
|
122
|
|
QSP
|
N
|
|
Optional Base
|
Model A200-90
|
