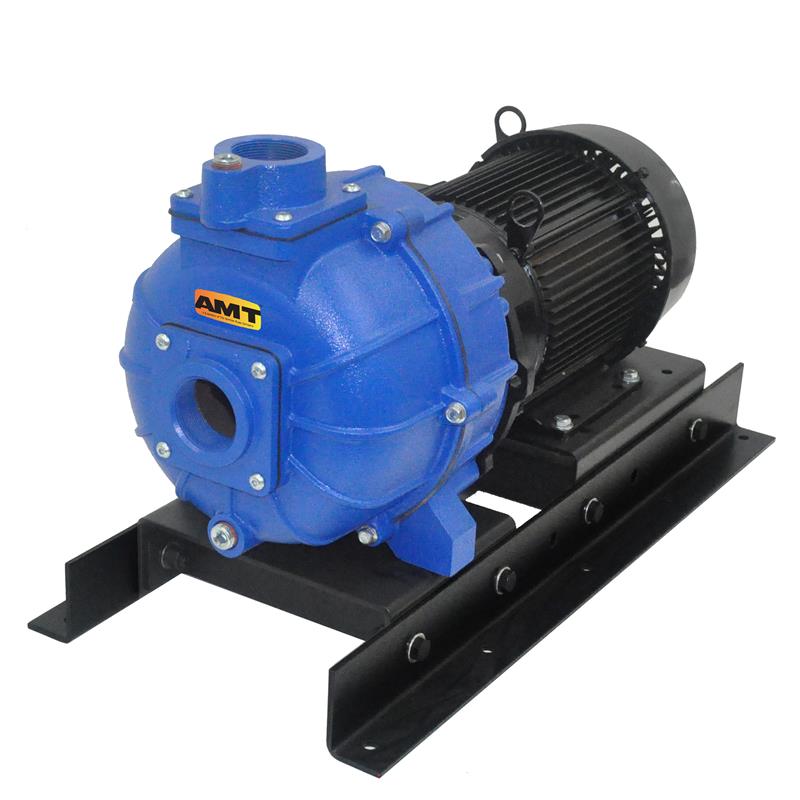

AMT Pumps 4804-95, 2" Self-Priming High Pressure Pump (10 HP, 3 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 208-230/460V)
AMT Pumps 4804-95, 2" Self-Priming High Pressure Pump (10 HP, 3 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 208-230/460V)
SKU:4804-95
Regular price
$2,048.70 USD
Regular price
$3,155.00 USD
Sale price
$2,048.70 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 4804-95, 2" Self-Priming High Pressure Pump, 10 HP, 3 Phase, 2" Discharge, Cast Iron Material,
| Applications | |
| AMT 2 Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors. | |
| Features | |
| Cast Iron Construction with Dual Closed Vane Aluminum Impellers | |
| Viton Mechanical Seal w/ Silicon Carbide and Carbon Faces | |
| Built in EPR/EDPM Check Valve permits Self-Priming up to 20 Ft. | |
| Closed Vane Aluminum Impeller design for High Pressure Performance | |
| Fill and Drain Plugs for Easy Installation and Servicing | |
| 2 NPT Suction and Discharge Ports | |
| Maximum Temperature 180 F | |
| Maximum Working Pressure 150 PSI | |
| Optional Mounting Base Available (A200-90) available on all models | |
| Hazardous Duty/Xplosion Proof Motors Available; Call for Quote and Lead Time | |
Specifications | |
Brand |
AMT |
Catalog Number |
4804-95 |
Type |
2" Self-Priming High Pressure Pump |
HP |
10 |
Phase |
3 |
Suction |
2" |
Discharge |
2" |
Type |
TEFC |
Frame |
215JM |
VAC/60 Hz |
208-230/460 |
Material |
Cast Iron |
Seal |
Viton/Sil/Car |
Full Load Amp |
26/13 |
Ship WT (lbs) |
215 |
Self-Priming |
to 20' |
Max Head |
270 ft |
Max PSI |
116 |
Max GPM |
122 |
QSP |
N |
Optional Base |
Model A200-90 |
Support Documents (pdf) |
