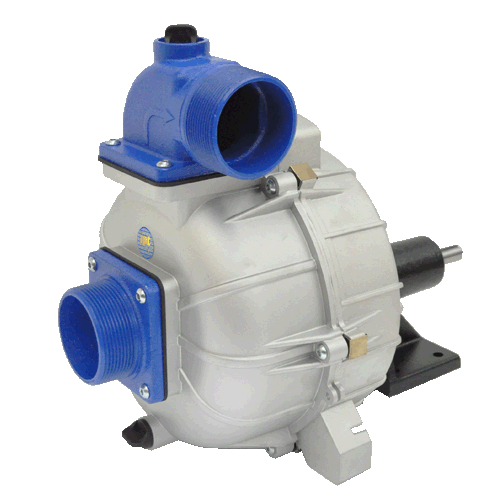

AMT Pumps 3S5XP, 3" Trash Pedestal Drive Pump (5 HP, 3" NPT Suction and Discharge, Viton Seal)
AMT Pumps 3S5XP, 3" Trash Pedestal Drive Pump (5 HP, 3" NPT Suction and Discharge, Viton Seal)
SKU:3S5XP
Regular price
$707.14 USD
Regular price
$1,089.00 USD
Sale price
$707.14 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 3S5XP, Trash Pedestal Drive,3" NPT, 5 HP Required, EPDM/EPR Check Valve, Viton/SIC/SIC,Aluminum/Cast Iron
| Applications | |
| Pedestal drive units for flex-coupling to an electric motor are available in general purpose, high pressure and trash versions. All models are standard with threaded impeller. | |
| Features | |
| Stainless Steel Internal Screws and Pins for Easy Servicing | |
| Large Pump Casing for Faster Priming | |
| Built-in EPDM/EPR Check Valve for Fast Priming | |
| Horizontal Discharge No Need to Buy Elbow | |
| Threaded Male Connections No Need to Buy Nipples | |
| Stainless Steel Shaft Sleeve | |
| Strainer Supplied with Each Pump to Prevent Clogging | |
Specifications | |
Brand |
AMT |
Catalog Number |
3S5XP |
Type |
Aluminum with Cast Iron Pedestal Drive with Dual Sealed Ball Bearings |
Series |
Trash Pedestal Drive |
NPT |
3" |
HP Required |
5 |
Check Valve |
EPDM/EPR |
O-Ring |
EPDM/EPR |
Seal Type & Elastomer/Faces |
Viton/SIC/SIC |
Ship Wt. (Lbs.) |
49 |
SUC |
3" (Male) |
DIS |
3" (Male) |
Construction |
Aluminum/Cast Iron |
L |
18.5" |
W |
12.5" |
H |
16.0" |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
