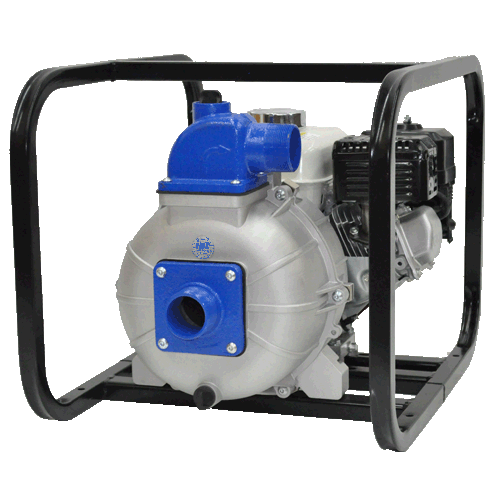

AMT Pumps 3S5XHR, 3" Trash Pump (5 HP, Honda GX200 Gasoline Engine, 3" NPT Port, Viton Seal, 2.5 Hr Run Time, .82 Gal Tank, Oil alert)

AMT Pumps 3S5XHR, 3" Trash Pump (5 HP, Honda GX200 Gasoline Engine, 3" NPT Port, Viton Seal, 2.5 Hr Run Time, .82 Gal Tank, Oil alert)

👁️ [COUNT] People are currently viewing this product.

3S5XHR

$1,314.67 USD
$1,972.00 USD $1,314.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 3S5XHR, 3" Trash Pumps, 5 HP, 3" NPT, Honda GX160, Viton / SIC-SIC Seal,
Applications
IPT Portable High Volume, Self-priming Centrifugal Trash pumps come standard with a cast iron impeller to resist abrasion and one tool serviceability for easy cleanout. All pumps feature aluminum housing, cast iron wearparts, built-in check valve, suction strainer and heavy duty steel roll frame. Heavy duty cast iron flanges with male NPT threads that rotates in 90 increments. Easy access fill plug on discharge port.
Features
Cast Iron Impeller
One Tool Serviceability Tool Included with Engine Driven Models
Silicon Carbide Mechanical Seal with Graphite Impregnated Seat and Viton Elastomers
Built-in EPDM/EPR Check Valve
Removable/Replaceable Cast Iron Suction/Discharge Ports
Discharge Port Rotates in 90 Increments
Vibration Dampening Feet
Maximum Temperature 180 F

Specifications

Brand
AMT
Catalog Number
3S5XHR
Type
Engine Driven Self-Priming Trash Pumps
Series
3" Trash Pumps
HP
5 HP
Curve
B
Port
3" NPT
Driver
Honda GX200
Seal
Viton / SIC-SIC
Run Time (Hours)
2.5
Tank Size (Gal/Ltr.)
0.82/3.1
Ship Wt. (Lbs.)
100
Discharge
3" NPT
Suction
3" NPT
Oil Alert
Included
L
24.0"
W
19.5"
H
19.9"
Warranty
1 Year
Notes
See Support Documents
