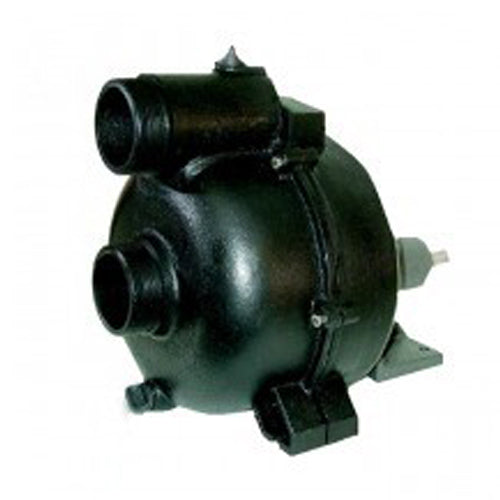

AMT Pumps 3S5PC, 3" Cast Iron Trash Pedestal Pump (6 HP Required, EPDM/EPR Check Valve, Viton/SIC/SIC,Cast Iron)
AMT Pumps 3S5PC, 3" Cast Iron Trash Pedestal Pump (6 HP Required, EPDM/EPR Check Valve, Viton/SIC/SIC,Cast Iron)
No reviews
SKU:3S5PC
Regular price
$765.58 USD
Regular price
$1,179.00 USD
Sale price
$765.58 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 3S5PC, Trash Pedestal Drive,3" NPT, 6 HP Required, EPDM/EPR Check Valve, Viton/SIC/SIC,Cast Iron
| Applications | |
| Pedestal drive units for flex-coupling to an electric motor are available in general purpose, high pressure and trash versions. All models are standard with threaded impeller. | |
| Features | |
| Stainless Steel Internal Screws and Pins for Easy Servicing | |
| Large Pump Casing for Faster Priming | |
| Built-in EPDM/EPR Check Valve for Fast Priming | |
| Horizontal Discharge No Need to Buy Elbow | |
| Threaded Male Connections No Need to Buy Nipples | |
| Stainless Steel Shaft Sleeve | |
| Strainer Supplied with Each Pump to Prevent Clogging | |
Specifications | |
Brand |
AMT |
Catalog Number |
3S5PC |
Type |
Heavy Duty Cast Iron Pedestal Drive with Dual Sealed Ball Bearings |
Series |
Trash Pedestal Drive |
NPT |
3" |
HP Required |
6 |
Check Valve |
EPDM/EPR |
O-Ring |
EPDM/EPR |
Seal Type & Elastomer/Faces |
Viton/SIC/SIC |
Ship Wt. (Lbs.) |
80 |
SUC |
3" (Male) |
DIS |
3" (Male) |
Impeller Shaft Size |
5/8” DIA. |
Keyed Shaft Size |
3/4" DIA. |
Construction |
Cast Iron |
L |
17.6" |
W |
12.4" |
H |
11.6" |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
