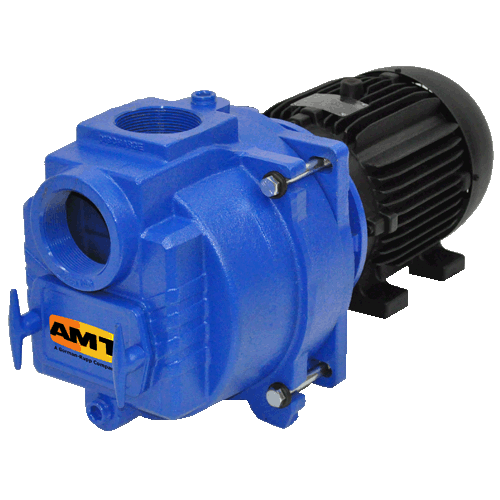

AMT Pumps 399D-95, 4" Cast Iron Trash Pump (15 HP, 4" NPT, 3 Phase, TEFC,230/460 V, 2" Max Solids)
AMT Pumps 399D-95, 4" Cast Iron Trash Pump (15 HP, 4" NPT, 3 Phase, TEFC,230/460 V, 2" Max Solids)
No reviews
SKU:399D-95
Regular price
$2,929.22 USD
Regular price
$4,511.00 USD
Sale price
$2,929.22 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 399C-95, Cast Iron Sewage & Trash Pumps Series, 15 HP, 4" NPT,3 Phase, TEFC,230/460 V, 2" Max Solids
| Applications |
| AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2", 3" or 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% maximum 15% solids. |
| Features |
| Cast Iron Construction for Abrasive Resistance and Durability |
| Silicon Carbide/Viton Mechanical Seal |
| Built-in Buna-N Check Valve |
| Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance |
| Self-Cleaning Stainless Steel Impeller Resists Clogging and Wear |
| Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping |
| 3" & 4" Models Feature Front Cleanout |
| Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling |
| Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve |
| Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors |
| Single or Three Phase, 3450 RPM Motors |
| Optional Mounting Base Available. |
Specifications | |
Brand |
AMT |
Catalog Number |
399D-95 (Replaced 399C-95) |
Type |
Trash Pumps |
Series |
Cast Iron Sewage & Trash Pumps |
HP |
15 |
SUC |
4" NPT |
DIS |
4" NPT |
Curve |
E |
Phase |
3 |
ENC |
TEFC |
Frame |
215JM |
Voltage @ 60 Hz + |
230/460 |
Full Load Amps |
47/24 |
Max Solids |
2" |
Ship Wt. (Lbs.) |
275 |
Warranty |
1 Year |
|
Optional Mounting Base
(184/215 JM Frames Only)
|
Model A200-90 |
Notes |
See Support Documents |
Support Documents (pdf) |
