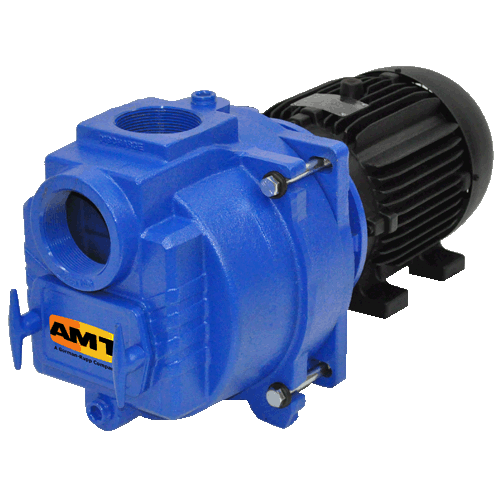

AMT Pumps 394K-95, 3" Cast Iron Trash Pump (110 HP, 3" NPT,1 Phase, TEFC, 230 V, 1" Max Solids)
AMT Pumps 394K-95, 3" Cast Iron Trash Pump (110 HP, 3" NPT,1 Phase, TEFC, 230 V, 1" Max Solids)
No reviews
SKU:394K-95
Regular price
$3,377.92 USD
Regular price
$5,202.00 USD
Sale price
$3,377.92 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 394F-95, Cast Iron Sewage & Trash Pumps Series, 10 HP, 3" NPT,1 Phase, TEFC,230 V, 1" Max Solids
| Applications | |
| AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2", 3" or 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% maximum 15% solids. | |
| Features | |
| Cast Iron Construction for Abrasive Resistance and Durability | Optional Mounting Base Available for 184/215 JM Frames |
| Silicon Carbide/Viton Mechanical Seal | Maximum Working Pressure 150 PSI |
| Built-in Buna-N Check Valve | Seal Flush Port Provided on 5 HP and Larger |
| Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance | Optional Mounting Base Available |
| Self-Cleaning Stainless Steel Impeller Resists Clogging and Wear | QSP - Quick Ship Pump for Many Models |
| Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping | |
| 3" & 4" Models Feature Front Cleanout | |
| Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling | |
| Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve | |
| Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors | |
| Single or Three Phase, 3450 RPM Motors | |
Specifications | |
Brand |
AMT |
Catalog Number |
394K-95 (Replaced 394F-95) |
Type |
Trash Pumps |
Series |
Cast Iron Sewage & Trash Pumps |
HP |
10 |
SUC |
3" NPT |
DIS |
3" NPT |
Curve |
D |
Phase |
1 |
ENC |
TEFC |
Frame |
215JM |
Voltage @ 60 Hz + |
230 |
Full Load Amps |
40 |
Max Solids |
1" |
Ship Wt. (Lbs.) |
360 |
Warranty |
1 Year |
|
Optional Mounting Base
(184/215 JM Frames)
|
Model A200-90 |
Notes |
See Support Documents |
Support Documents (pdf) |
