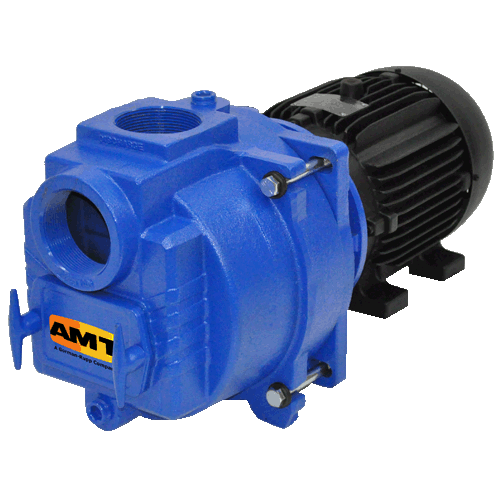

AMT Pumps 393B-95, 2" Cast Iron Trash Pump (5 HP, 2" NPT,1 Phase, TEFC, 230 V, 1" Max Solids)
AMT Pumps 393B-95, 2" Cast Iron Trash Pump (5 HP, 2" NPT,1 Phase, TEFC, 230 V, 1" Max Solids)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:393B-95
Regular price
$2,122.00 USD
Regular price
$3,183.00 USD
Sale price
$2,122.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 393B-95, Cast Iron Sewage & Trash Pumps Series, 5 HP, 2" NPT,1 Phase, TEFC,230 V, 1" Max Solids
| Applications |
| AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2", 3" or 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% maximum 15% solids. |
| Features |
| Cast Iron Construction for Abrasive Resistance and Durability |
| Silicon Carbide/Viton Mechanical Seal |
| Built-in Buna-N Check Valve |
| Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance |
| Self-Cleaning Stainless Steel Impeller Resists Clogging and Wear |
| Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping |
| 3" & 4" Models Feature Front Cleanout |
| Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling |
| Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve |
| Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors |
| Single or Three Phase, 3450 RPM Motors |
| Optional Mounting Base Available for 184/215 JM Frames |
| Maximum Working Pressure 150 PSI |
| Seal Flush Port Provided on 5 HP and Larger |
| Optional Mounting Base Available |
| QSP - Quick Ship Pump for Many Models |
Specifications | |
Brand |
AMT |
Catalog Number |
393B-95 |
Type |
Trash Pumps |
Series |
Cast Iron Sewage & Trash Pumps |
HP |
5 |
SUC |
2" NPT |
DIS |
2" NPT |
Curve |
B |
Phase |
1 |
ENC |
TEFC |
Frame |
184JM |
Voltage @ 60 Hz |
230 |
Full Load Amps |
20 |
Max Solids |
1" |
Ship Wt. (Lbs.) |
189 |
Warranty |
1 Year |
|
OptionalMounting Base
(184/215 JM Frames Only)
|
Model A200-90 |
Notes |
See Support Documents |
Support Documents (pdf) |
