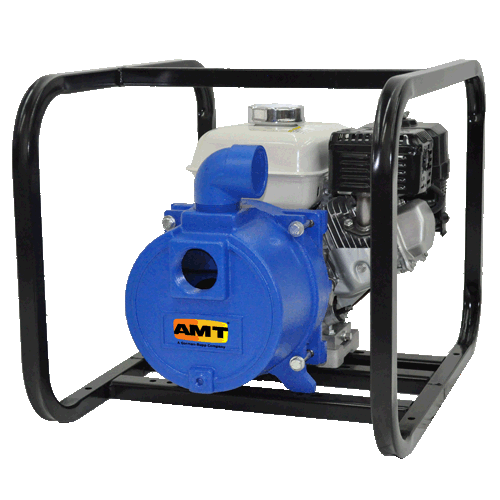

3937-D5 AMT 2" Engine Driven Trash Pump (5 HP, Hazt Diesel 1B30, 2 " NPT Port, 2.7 Hr Run Time, .82 Gal Tank Size, 1"Dia Max Solids)

3937-D5 AMT 2" Engine Driven Trash Pump (5 HP, Hazt Diesel 1B30, 2 " NPT Port, 2.7 Hr Run Time, .82 Gal Tank Size, 1"Dia Max Solids)

👁️ [COUNT] People are currently viewing this product.

3937-D5

$5,718.00 USD
$8,577.00 USD $5,718.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 3937-D5, 2" Engine Driven Trash Pumps Series B Curve, 2" NPT, Hatz Diesel 1B30, 5 HP Class
Applications
AMT Cast Iron Engine Driven Trash pumps are designed for applications which require high flow efficiency, solids handling capability and abrasion resistance. This series of pumps are also good for chemical spraying, handling and processing. These pumps are constructed of heavy duty CNC machined cast iron components featuring removable/replaceable cast iron volute and impeller. Simple four bolt clean out design permits easy removal of trash and debris without disconnecting hoses. Pumps are available with gasoline overhead valve or diesel engines from various engine manufacturers.
Features
(2) NPT Pipe Nipples & 2" Street Elbow Included
Viton/Silicon Carbide Mechanical Seal
Viton O-ring and Casing Seal
Self-primes to 20 Feet with Built-in Viton Check Valve
Stainless Steel Shaft Sleeve
Steel Suction Strainer Included
Cast Iron Replaceable Volute/Wearplate and Impeller
Maximum Temperature 180 F
Maximum Working Pressure 75 PSI
Heavy Duty Steel Roll Frame Included
B & S Vanguard and Honda Engines are Overhead Valve (OHV) Designs with Low Oil Alert

Specifications

Brand
AMT
Catalog Number
3937-D5
Type
Trash Pumps
Series
2" Engine Driven Trash Pumps
Curve
B
Port
2" NPT
Driver
Hatz Diesel 1B30
Seal
Viton / SIC
Run Time (Hours)
2.7
Tank Size (Gal/Ltr.)
.82 / 3.1
Ship Wt. (Lbs.)
140
HP Class
5 HP
Oil Alert
Included
Max Solids
1" Diameter
Suction
2" NPT
Discharge
2" NPT
L
31"
W
22.5"
H
23.6"
Optional Wheel kit
C402-90
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
