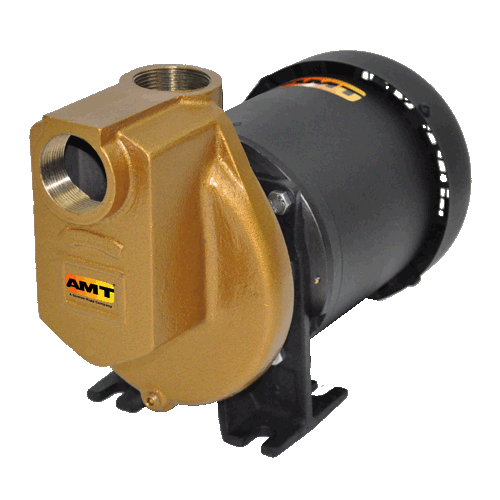

AMT Pumps 3893-97, 1-1/2" Bronze Self-Priming Chemical Pump (1-1/2 HP, 230/460V, TEFC, 3 Phase, Viton Seal)
AMT Pumps 3893-97, 1-1/2" Bronze Self-Priming Chemical Pump (1-1/2 HP, 230/460V, TEFC, 3 Phase, Viton Seal)
SKU:3893-97
Regular price
$1,111.04 USD
Regular price
$1,711.00 USD
Sale price
$1,111.04 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 3893-97, 1-1/2 HP, TEFC56J230/460 VAC/60 Hz, 3 PHASE, Bronze Casing, Viton/SS
| Applications | |
| AMT Self-Priming 300 Series Stainless Steel or Bronze Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled (TEFC) motors. 300 Series Stainless Steel models are fitted with Teflon? mechanical seal and o-ring, while bronze models come standard with Viton? mechanical seal and o-ring. Pumps are selfpriming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU. | |
| Features | |
| Bronze or Stainless Steel Construction with Stainless Steel Impeller | |
| Viton? or Teflon? Mechanical Seal and O-ring - Depending on Model | |
| 1-1/2" NPT Suction and Discharge Ports | |
| Maximum Temperature:Bronze: 200 F, Stainless Steel: 250 F | |
| Self-priming to 6 Ft. | |
| Maximum Working Pressure 75 PSI | |
| Self-cleaning, Semi-open Impeller | |
| Pedestal Models Feature Epoxy Coated Bearing Housing with 3/4" Diameter Stainless Steel Shaft with 3/16" Keyway and Sealed Ball Bearings | |
| 3/4 to 2 HP Totally Enclosed Fan Cooled (TEFC) Single or Three Phase Motors | |
| Designed to handle liquids of specific gravities up to 1.3 | |
| QSP - Quick Ship Pump for Many Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
3893-97 |
Type |
Chemical Pumps |
Series |
1-1/2" Self-Priming Chemical Pumps |
HP |
1-1/2 |
TYPE |
TEFC |
FRAME |
56J |
VAC/60 Hz |
230/460 |
PHASE |
3 |
CASING |
Bronze |
SHAFT SEAL |
Viton/SS |
SHIP WT (Lbs.) |
48 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
