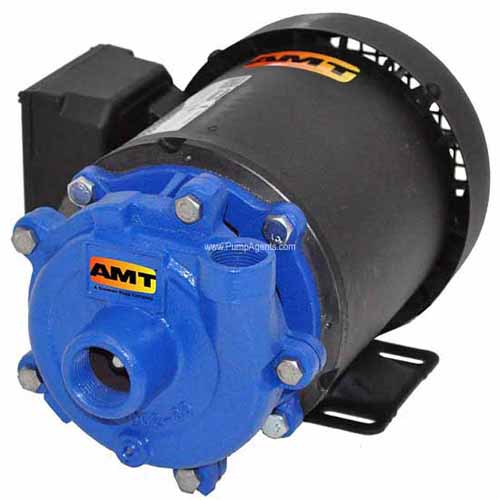

AMT Pumps 370F-95 Straight Centrifugal Pump (1/2 HP, 3 PH, 230/460V)
AMT Pumps 370F-95 Straight Centrifugal Pump (1/2 HP, 3 PH, 230/460V)
SKU:370F-95
Regular price
$408.44 USD
Regular price
$629.00 USD
Sale price
$408.44 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
AMT 370F, Straight Centrifugal Pumps,1/2 HP, 3 PH, TEFC,230/460 V, 1" NPT SUC, 3/4" NPT DIS
Applications | |
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. | |
Features | |
Stainless Steel, Bronze and Cast Iron Construction | QSP - Quick Ship Pump for Many Models |
Buna-N or Viton Mechanical Seal and O-ring, Depending on Model | |
Optional Silicon Carbide Mechanical Seals Available | |
Stainless Steel Motor Shaft and Hardware | |
NEMA 56J TEFC Single or Three Phase Motors | |
NEMA Base Mounted Motor | |
Self-cleaning Impeller | |
Discharge Rotates in 90 Increments | |
Maximum Working Pressure 75 PSI | |
Maximum Temperature:Viton: 200 F, Buna-N: 180 F | |
Front Drain Plug |
Specifications | |
Brand |
AMT |
Catalog Number |
370F-95 |
Type |
Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
Curve |
C |
HP |
1/2 |
Phase |
3 |
Enclosure | TEFC |
Voltage |
230/460 |
Full Load Amps |
3/2 |
Suction |
1" NPT |
Discharge |
3/4" NPT |
L |
12.4 [31.5] |
W |
8.8 [22.5] |
H |
7.2 [18.3] |
Ship Wt. (Lbs.) |
32 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
