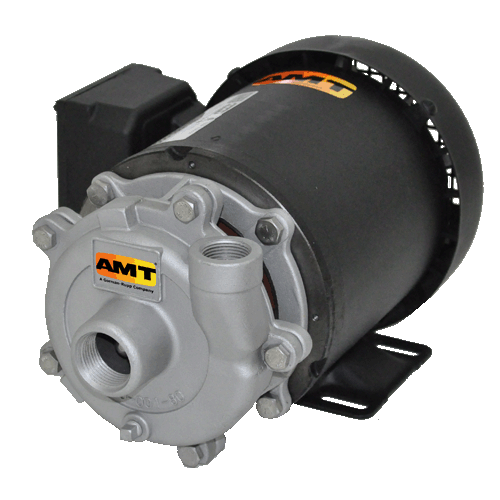

AMT Pumps 370C-98 Small Straight Centrifugal Pump (3/4 HP, 3 PH, Stainless Steel)
AMT Pumps 370C-98 Small Straight Centrifugal Pump (3/4 HP, 3 PH, Stainless Steel)
SKU:370C-98
Regular price
$589.61 USD
Regular price
$908.00 USD
Sale price
$589.61 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 370C-98, Stainless Steel Series, 3/4 HP, 3 Phase, TEFC, 56J Frame, 1 Suction (NPT)
| Applications | |
| AMT Solids Handling End Suction (NPT)Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet yourspecification. Pull-from-rear design for easy service without disturbing any piping. Self-cleaning impeller prevents clogging and handles solids of 1/8? diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction. | |
| Features | |
| Available in: 300 Series Investment Cast Stainless Steel, Cast Bronze and Cast Iron with Stainless Steel Impeller Construction | |
| Viton Mechanical Seal and O-Ring with Stainless Steel and Bronze Models | |
| Buna-N Mechanical Seal and O-Ring with Cast Iron Models | |
| Discharge Port Rotates in 90 Increments | |
| Self-Cleaning, Semi-Open Impeller | |
| Maximum Flow 90 GPM | |
| Maximum Head 65 Ft. (28 PSI) | |
Specifications | |
Brand |
AMT |
Catalog Number |
370C-98 |
Type |
Small Straight Centrifugal Pumps |
Series |
Stainless Steel |
HP |
3/4 |
Phase |
3 |
Type |
TEFC |
Frame |
56J |
VAC/60HZ |
230/460 |
Material |
Stainless Steel |
Seal |
Viton |
Impeller |
Stainless Steel |
Full Load Amp |
42796 |
Suction (NPT) |
1 |
Discharge |
3/4 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
