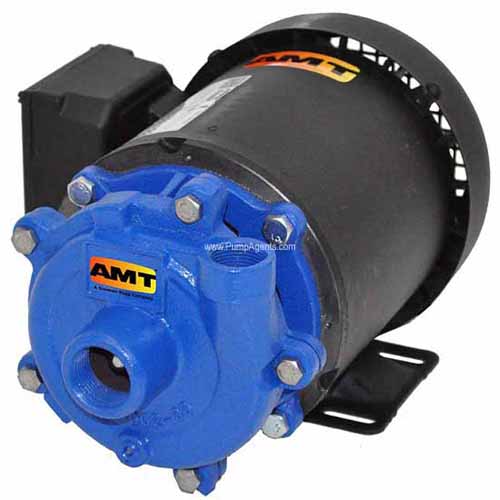

AMT Pumps 369C-95 Straight Centrifugal Pump (1 HP, 1 PH, 115/230V)
AMT Pumps 369C-95 Straight Centrifugal Pump (1 HP, 1 PH, 115/230V)
SKU:369C-95
Regular price
$442.86 USD
Regular price
$682.00 USD
Sale price
$442.86 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 369C, Straight Centrifugal Pumps,1 HP, 1 PH, TEFC,115/230 V, 1 1/4" NPT SUC, 1" NPT DIS
| Applications |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. |
| Features |
| Stainless Steel, Bronze and Cast Iron Construction |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
| Optional Silicon Carbide Mechanical Seals Available |
| Stainless Steel Motor Shaft and Hardware |
| NEMA 56J TEFC Single or Three Phase Motors |
| NEMA Base Mounted Motor |
| Self-cleaning Impeller |
| Discharge Rotates in 90 Increments |
| Maximum Working Pressure 75 PSI |
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F |
| Front Drain Plug |
Specifications | |
Brand |
AMT |
Catalog Number |
369C-95 |
Type |
Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
HP |
1 |
Phase |
1 |
| Enclosure | TEFC |
Voltage |
115/230 |
Full Load Amps |
12/6 |
Suction |
1-1/4" NPT |
Discharge |
1" NPT |
L |
13.9 [35.5] |
W |
8.8 [22.5] |
H |
8.6 [ 21.8] |
Ship Wt. (Lbs.) |
38 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
