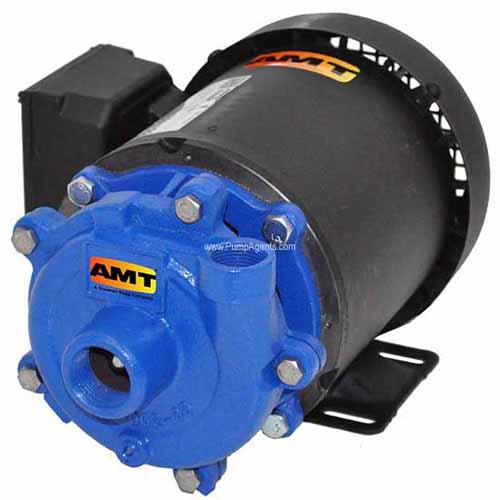

AMT Pumps 369B-95 Straight Centrifugal Pump (1 HP, 3 PH, 230/460V)
AMT Pumps 369B-95 Straight Centrifugal Pump (1 HP, 3 PH, 230/460V)
SKU:369B-95
Regular price
$503.25 USD
Regular price
$775.00 USD
Sale price
$503.25 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 369B, Straight Centrifugal Pumps,1 HP, 3 PH, TEFC,230/460 V,
| Applications | |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. | |
| Features | |
| Stainless Steel, Bronze and Cast Iron Construction | QSP - Quick Ship Pump for Many Models |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model | |
| Optional Silicon Carbide Mechanical Seals Available | |
| Stainless Steel Motor Shaft and Hardware | |
| NEMA 56J TEFC Single or Three Phase Motors | |
| NEMA Base Mounted Motor | |
| Self-cleaning Impeller | |
| Discharge Rotates in 90 Increments | |
| Maximum Working Pressure 75 PSI | |
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F | |
| Front Drain Plug | |
Specifications | |
Brand |
AMT |
Catalog Number |
369B-95 |
Type |
Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
HP |
1 |
Phase |
3 |
Enclosure |
TEFC |
Voltage |
230/460 |
Full Load Amps |
5/3 |
Suction |
1-1/4" NPT |
Discharge |
1" NPT |
L |
14.1 [35.8] |
W |
8.8 [22.5] |
H |
7.2 [18.3] |
Ship Wt. (Lbs.) |
41 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
