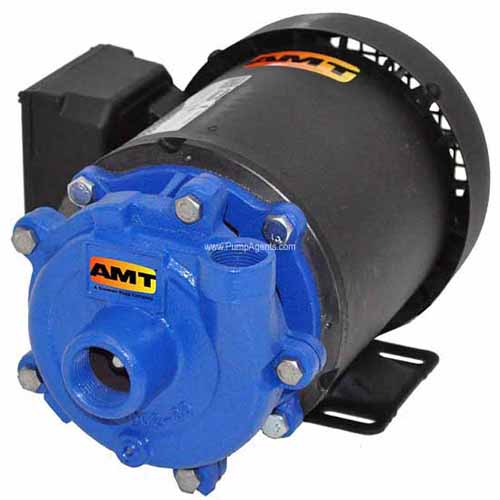

AMT Pumps 369A-95 Straight Centrifugal Pump (1-1/2 HP, 1 PH, 115/230V)
AMT Pumps 369A-95 Straight Centrifugal Pump (1-1/2 HP, 1 PH, 115/230V)
SKU:369A-95
Regular price
$487.20 USD
Regular price
$799.00 USD
Sale price
$487.20 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
AMT 369A-95, Straight Centrifugal Pumps, 1-1/2 HP, 1 PH, TEFC,115/230 V,
| Applications | |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. | |
| Features | |
| Stainless Steel, Bronze and Cast Iron Construction | QSP - Quick Ship Pump for Many Models |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model | |
| Optional Silicon Carbide Mechanical Seals Available | |
| Stainless Steel Motor Shaft and Hardware | |
| NEMA 56J TEFC Single or Three Phase Motors | |
| NEMA Base Mounted Motor | |
| Self-cleaning Impeller | |
| Discharge Rotates in 90 Increments | |
| Maximum Working Pressure 75 PSI | |
| Maximum Temperature: Viton: 200 F, Buna-N: 180 F | |
| Front Drain Plug | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
369A-95
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
Straight Centrifugal Pumps
|
|
Curve
|
G
|
|
HP
|
1-1/2
|
|
Phase
|
1
|
|
Enclosure
|
TEFC
|
|
Voltage
|
115/230
|
|
Full Load Amps
|
18/9
|
|
Suction
|
1-1/4" NPT
|
|
Discharge
|
1" NPT
|
|
L
|
14.2 [36.3]
|
|
W
|
8.8 [22.5]
|
|
H
|
8.6 [ 21.8]
|
|
Ship Wt. (Lbs.)
|
52
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
