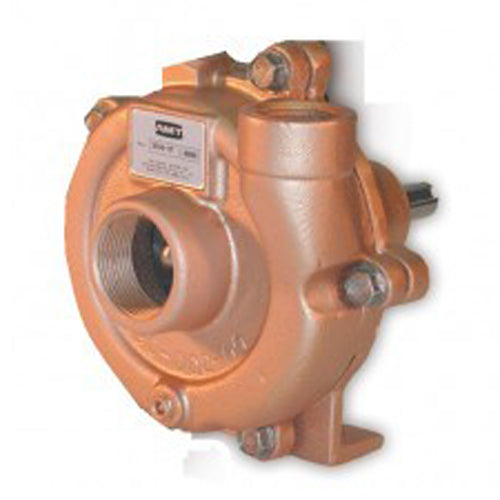

AMT Pumps 3694-97 Pedestal Pump (Min. 2 HP Required, 1-1/4" Suction, 1" Discharge, Bronze, Viton Shaft Seal, SS Impeller)

AMT Pumps 3694-97 Pedestal Pump (Min. 2 HP Required, 1-1/4" Suction, 1" Discharge, Bronze, Viton Shaft Seal, SS Impeller)

3694-97

$503.25 USD
$775.00 USD $503.25 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 3694-97, Pedestal Pump Sized for 2 HP,2 min. HP Req., Bronze,Viton/SS,Stainless Steel IMPELLER, 1-1/4" NPT SUC, 1" NPT DIS
Applications
AMT Straight Centrifugal Pedestal pumps are designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. The high head models are ideal for sprinkler systems and pressure boosting
Features
Maximum Temperature:Buna-N: 180 F, Viton: 200 F
1/2" to 1-1/4" NPT Discharge Ports
Self-cleaning Impeller on General Service Models
Epoxy Coated Pedestal Drive and Discharge Port Rotates in 90 Increments on High Head Models

Specifications

Brand
AMT
Catalog Number
3694-97
Type
Straight Centrifugal Pedestal Pumps
Series
General Service Models
TYPE & MINIMUM HP REQUIRED
Pedestal Pump Sized for 2 HP
Minimum HP Required
2
CASING
Bronze
SHAFT SEAL
Viton/SS
IMPELLER
Stainless Steel
SHIP WT (Lbs.)
13
Curve
C
SUC
1-1/4" NPT
DIS
1" NPT
Minimum BHP Required @ 3450 RPM
1.95
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
