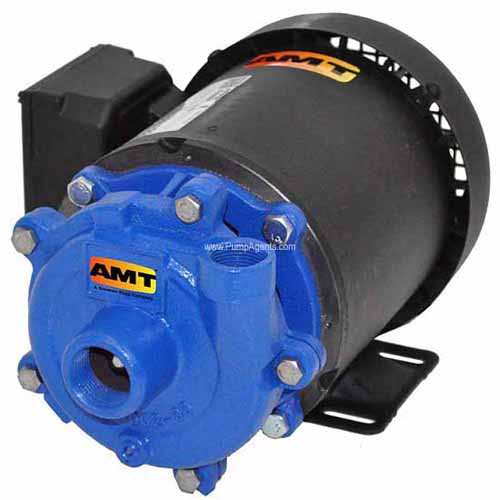

AMT Pumps 368C-95 Straight Centrifugal Pump (1/2 HP, 3 PH, 230/460V)

AMT Pumps 368C-95 Straight Centrifugal Pump (1/2 HP, 3 PH, 230/460V)

368C-95

$411.04 USD
$633.00 USD $411.04 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 368C, Straight Centrifugal Pumps,1/2 HP, 3 PH, TEFC,230/460 V, 3/4" NPT SUC, 1/2" NPT DIS
Applications
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling.
Features
Stainless Steel, Bronze and Cast Iron Construction QSP - Quick Ship Pump for Many Models
Buna-N or Viton Mechanical Seal and O-ring, Depending on Model
Optional Silicon Carbide Mechanical Seals Available
Stainless Steel Motor Shaft and Hardware
NEMA 56J TEFC Single or Three Phase Motors
NEMA Base Mounted Motor
Self-cleaning Impeller
Discharge Rotates in 90 Increments
Maximum Working Pressure 75 PSI
Maximum Temperature:Viton: 200 F, Buna-N: 180 F
Front Drain Plug

Specifications

Brand
AMT
Catalog Number
368C-95
Type
Centrifugal Pumps
Series
Straight Centrifugal Pumps
Curve
B
HP
1/2
Phase
3
Enclosure
TEFC
Voltage
230/460
Full Load Amps
3/2
Suction
3/4" NPT
Discharge
1/2" NPT
L
12.4 [31.5]
W
8.3 [21.3]
H
7.2 [18.3]
Ship Wt. (Lbs.)
31
Warranty
1 Year
Notes
See Support Documents
