• 368B-95 AMT Cast Iron Straight Centrifugal Pump (1/2 HP, 1 Phase, 115/230 Volt, Buna-N Seal, Stainless Steel Impeller, TEFC Type) - KG Power Systems
1 1

AMT

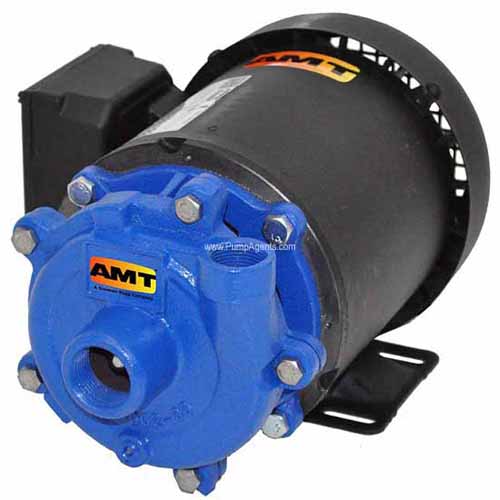

368B-95 AMT Cast Iron Straight Centrifugal Pump (1/2 HP, 1 Phase, 115/230 Volt, Buna-N Seal, Stainless Steel Impeller, TEFC Type)

368B-95 AMT Cast Iron Straight Centrifugal Pump (1/2 HP, 1 Phase, 115/230 Volt, Buna-N Seal, Stainless Steel Impeller, TEFC Type)

[COUNT] shoppers are looking at this right now

368B-95

$444.67 USD
$667.00 USD $444.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

AMT 368B, Straight Centrifugal Pumps,1/2 HP, 1 PH, TEFC,115/230 V, 3/4" NPT SUC, 1/2" NPT DIS
Applications
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling.
Features
Stainless Steel, Bronze and Cast Iron Construction QSP - Quick Ship Pump for Many Models
Buna-N or Viton Mechanical Seal and O-ring, Depending on Model
Optional Silicon Carbide Mechanical Seals Available
Stainless Steel Motor Shaft and Hardware
NEMA 56J TEFC Single or Three Phase Motors
NEMA Base Mounted Motor
Self-cleaning Impeller
Discharge Rotates in 90 Increments
Maximum Working Pressure 75 PSI
Maximum Temperature:Viton: 200 F, Buna-N: 180 F
Front Drain Plug

Specifications

Brand
AMT
Catalog Number
368B-95
Type
Centrifugal Pumps
Series
Straight Centrifugal Pumps
HP
1/2
Phase
1
Enclosure
TEFC
Voltage
115/230
Full Load Amps
9/5
Suction
3/4" NPT
Discharge
1/2" NPT
L
13.0 [33.0]
W
8.3 [21.3]
H
8.6 [ 21.8]
Ship Wt. (Lbs.)
35
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
