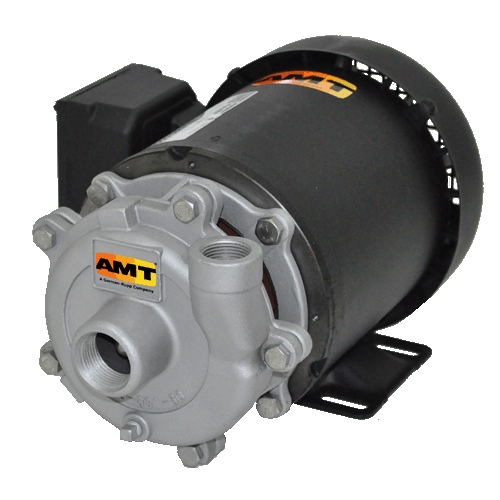

AMT Pumps 368A-98 Small Straight Centrifugal Pump (1/3 HP, 1 PH, Stainless Steel)

AMT Pumps 368A-98 Small Straight Centrifugal Pump (1/3 HP, 1 PH, Stainless Steel)

👁️ [COUNT] People are currently viewing this product.

368A-98

$596.67 USD
$895.00 USD $596.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 368A-98, Stainless Steel Series, 1/3 HP, 1 Phase, TEFC, 56J Frame, 3/4 Suction (NPT)

Applications
AMT Solids Handling End Suction (NPT)Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet yourspecification. Pull-from-rear design for easy service without disturbing any piping. Self-cleaning impeller prevents clogging and handles solids of 1/8? diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction.
Features
Available in: 300 Series Investment Cast Stainless Steel, Cast Bronze and Cast Iron with Stainless Steel Impeller Construction
Viton Mechanical Seal and O-Ring with Stainless Steel and Bronze Models
Buna-N Mechanical Seal and O-Ring with Cast Iron Models
Discharge Port Rotates in 90 Increments
Self-Cleaning, Semi-Open Impeller
Maximum Flow 90 GPM
Maximum Head 65 Ft. (28 PSI)

Specifications

Brand
AMT
Catalog Number
368A-98
Type
Small Straight Centrifugal Pumps
Series
Stainless Steel
HP
1/3
Phase
1
Type
TEFC
Frame
56J
VAC/60HZ
115/230
Material
Stainless Steel
Seal
Viton
Impeller
Stainless Steel
Full Load Amp
42920
Suction (NPT)
3/4
Discharge
1/2
Warranty
1 Year
