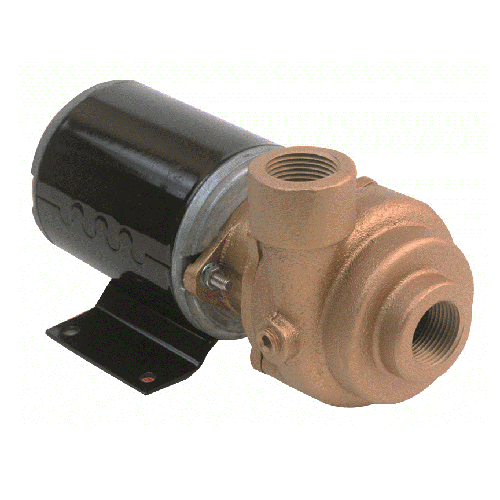

3670-97 AMT Bronze Marine Pump (1/8 HP, 115 Volt, 3/4" Suction, 3/4" Discharge, 1 Phase, 1750 RPM, TEFC)

3670-97 AMT Bronze Marine Pump (1/8 HP, 115 Volt, 3/4" Suction, 3/4" Discharge, 1 Phase, 1750 RPM, TEFC)

[COUNT] shoppers are looking at this right now

3670-97

$411.33 USD
$617.00 USD $411.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

AMT 3670-94, Bronze Marine Pumps,1/8 HP, 1 PH, TEFC ENC, 115 V, 3/4" NPT
Applications
The AMT Model 3670-94 Naval Bronze Straight Centrifugal pump is designed for low pressure salt water wash down and recirculating applications. The pump has been sized for salt water (1.03 specific gravity) and feature provisions for the installation of a seal wash, front drain plug and pullfrom-rear design. The unit is driven by a 1/8 HP capacitor start induction motor (TEFC) with ball bearings and a stainless steel shaft. On/off switch and line cord are standard.
Features
Bronze Construction
Buna-N Mechanical Seal and O-ring
Maximum Temperature 180 F
Self-cleaning, Semi-open Impeller
Totally Enclosed Motors

Specifications

Brand
AMT
Catalog Number
3670-97 (Replaced 3670-94)
Type
Marine Pumps
Series
Bronze Marine Pumps
Curve
B
HP
1/8
Phase
1
RPM
1750
Enclosure
TEFC
Voltage
115
Full Load Amps
11
Suction
3/4" NPT
Discharge
3/4" NPT
Length
10.1"
Width
8.0"
Height
5.6"
Ship Wt. (Lbs.)
20
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
