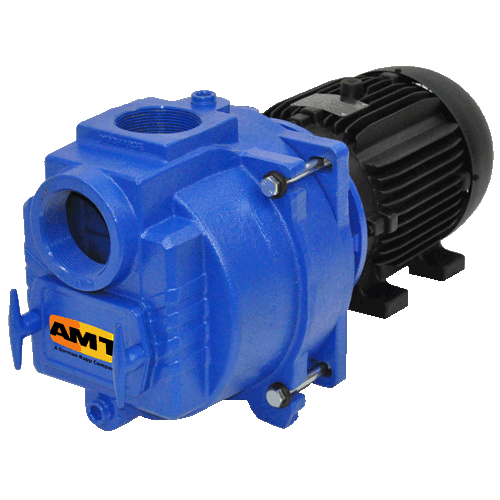

316B-95 AMT 2" Cast Iron Trash Pump (3 HP, 1 Phase, 230 Volt, TEFC Enclosure, 16 FLA, 2" NPT Discharge, 2" NPT Suction, 56J Frame, 1" Max Solids)
316B-95 AMT 2" Cast Iron Trash Pump (3 HP, 1 Phase, 230 Volt, TEFC Enclosure, 16 FLA, 2" NPT Discharge, 2" NPT Suction, 56J Frame, 1" Max Solids)
[COUNT] shoppers are looking at this right now
No reviews
SKU:316B-95
Regular price
$1,187.33 USD
Regular price
$1,781.00 USD
Sale price
$1,187.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 316B-95, Cast Iron Sewage & Trash Pumps Series, 3 HP, 2" NPT,1 Phase, TEFC,230 V, 1" Max Solids
| Applications |
| AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2", 3" or 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% maximum 15% solids. |
| Features |
| Cast Iron Construction for Abrasive Resistance and Durability |
| Silicon Carbide/Viton Mechanical Seal |
| Built-in Buna-N Check Valve |
| Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance |
| Self-Cleaning Stainless Steel Impeller Resists Clogging and Wear |
| Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping |
| 3" & 4" Models Feature Front Cleanout |
| Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling |
| Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve |
| Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors |
| Single or Three Phase, 3450 RPM Motors |
| Optional Mounting Base Available for 184/215 JM Frames |
| Optional Mounting Base Available |
| * This model is not able to be paired with an explosion proof model. Call for other options. |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
316B-95
|
|
Type
|
Trash Pumps
|
|
Series
|
Cast Iron Sewage & Trash Pumps
|
|
HP
|
3
|
|
SUC
|
2" NPT
|
|
DIS
|
2" NPT
|
|
Curve
|
A
|
|
Phase
|
1
|
|
ENC
|
TEFC
|
|
Frame
|
56J
|
|
Voltage @ 60 Hz +
|
230
|
|
Full Load Amps
|
16
|
|
Max Solids
|
1"
|
|
Ship Wt. (Lbs.)
|
94
|
|
Warranty
|
1 Year
|
|
Optional Mounting Base
|
See part # A201-90
|
