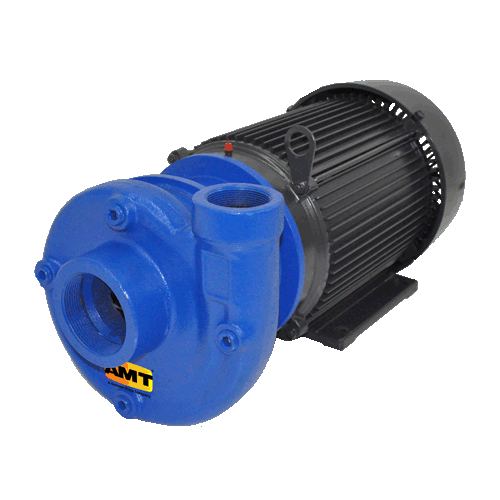

AMT Pumps 315B-95 Heavy Duty Straight Centrifugal Pump (3 HP, 230/460 V, 3 PH)
AMT Pumps 315B-95 Heavy Duty Straight Centrifugal Pump (3 HP, 230/460 V, 3 PH)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:315B-95
Regular price
$954.00 USD
Regular price
$1,431.00 USD
Sale price
$954.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 315B-95, Cast Iron with Stainless Steel Impeller,3 HP, TEFC,230/460 V, Cast Iron,Buna-N/SS
| Applications |
| AMT Heavy Duty Solids Handling End Suction Centrifugal pumps are suited for liquid and chemical transfer, heating and cooling, recirculation, booster service, dirty water and other industrial applications. Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semi-open impeller features self-cleaning ability that makes the unit useful in applications involving up to 1/8" diameter solids and muddy or dirty liquids, as well as clean, clear fluids. Discharge position can be adjusted in 90 increments with vent and drain plugs for all positions. Type 21 mechanical seal and O-ring casing seal. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. |
| Features |
| Stainless Steel, Bronze and Cast Bronze Construction |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
| Optional Silicon Carbide Mechanical Seals Available |
| Stainless Steel Motor Shaft and Hardware |
| NEMA TEFC Single and Three Phase Motors, Depending on Model |
| Optional Mounting Base Available for 182/184/215 JM Frames |
| Self-cleaning Stainless Steel Impeller |
| Maximum Working Pressure 150 PSI |
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F |
| Optional Seal Wash Port and Hose Available on All Models |
| Pedestal Version Models Available for Frame Models 145/182/184JM |
| Pumps are not self-priming and require flooded suction. |
Specifications | |
Brand |
AMT |
Catalog Number |
315B-95 |
Type |
Heavy Duty Straight Centrifugal Pumps |
Series |
Cast Iron with Stainless Steel Impeller |
HP |
3 |
TYPE |
TEFC |
FRAME |
56J |
Voltage |
230/460 |
Suction |
2" |
Discharge |
1-1/2" |
PHASE |
3 |
CONSTRUCTION |
Cast Iron |
SEAL |
Buna-N/SS |
SHIP WT (Lbs.) |
75 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
