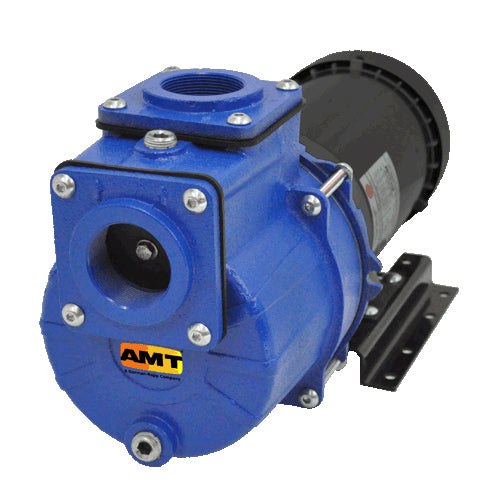

AMT Pumps 2SP30C-3P, 2" Self-Priming Chemical Pump (3 HP, 3 Phase, 208-230/460V, TEFC, 2" Suction, 2" Discharge, Cast Iron)
AMT Pumps 2SP30C-3P, 2" Self-Priming Chemical Pump (3 HP, 3 Phase, 208-230/460V, TEFC, 2" Suction, 2" Discharge, Cast Iron)
SKU:2SP30C-3P
Regular price
$834.42 USD
Regular price
$1,285.00 USD
Sale price
$834.42 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 2SP30C-3P, 3 HP, 3 PH, 208-230/460 V, 2" NPT, Cast IronEPDM/EPR
| Applications | |
| This line of AMT Self-Priming Centrifugal pumps is designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and chemical processing. These pumps feature a self-cleaning clog resistant impeller capable of handling up to 3/8" diameter semi-solid and EPDM/EPR seals for liquid chemical transfer with specific gravities up to 1.2. (Verify chemical capability with liquids) Built-in check valve enables consistent self-priming to 20 feet. Dual volute design reduces radial load on motor. Pumps feature Dual cycle 50/60 Hz TEFC motors. | |
| Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; CALL FOR QUOTATION & LEAD TIME! | |
| Features | |
| Cast Iron Construction with EPDM/EPR Mechanical Seals | |
| Built-in Check Valve for Fast PrimingFast Priming | |
| NEMA 56J Motors with Stainless Steel Shafts | |
| Maximum Working Pressure 125 PSI | |
| Available in Dual 50/60 Hz TEFC, Single or Three Phase Motors | |
| Self-primes to 20 Ft. | |
| Self-cleaning, Clog Resistant Impellers | |
| Designed to handle liquids of specific gravities up to 1.3 | |
| Do Not Use With Petroleum Based Liquids! | |
| QSP Quick Ship for Many Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
2SP30C-3P |
Type |
Chemical Pumps |
Series |
1"-2" Self-Priming Chemical Pumps |
Curve |
F |
HP |
3 |
PH |
3 |
ENC |
TEFC |
Voltage @ 60 Hz + |
208-230/460 |
Full Load Amps |
8/4 |
Suction (inch.) |
2" |
Discharge (inch.) |
2" |
Casing |
Cast Iron |
Shaft Seal |
EPDM/EPR |
L |
21.3" |
W |
11.0" |
H |
11.0" |
Ship Wt. (Lbs.) |
82 |
Maximum Solids Handling Capacity |
1/2" |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
