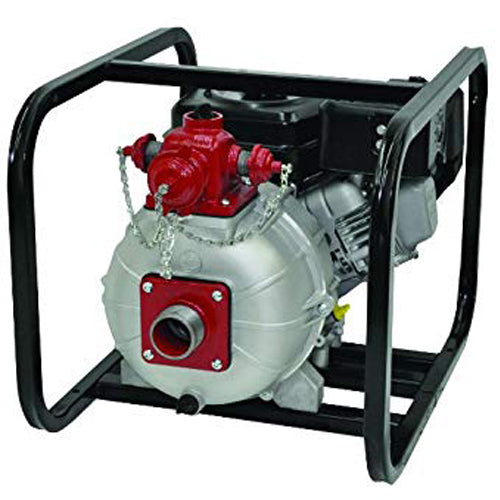

AMT Pumps 2MP5HR, 2" Engine Driven Two Stage High Pressure Fire Pump (Honda GX160, 5 HP, 2 HR Run Time, .82 GAL Tank Size, 3-Way Discharge, 2" Suct)
AMT Pumps 2MP5HR, 2" Engine Driven Two Stage High Pressure Fire Pump (Honda GX160, 5 HP, 2 HR Run Time, .82 GAL Tank Size, 3-Way Discharge, 2" Suct)
No reviews
SKU:2MP5HR
Regular price
$1,491.56 USD
Regular price
$2,297.00 USD
Sale price
$1,491.56 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 2MP5HR, Engine Driven Two Stage High Pressure/Fire Pumps Series, Honda GX160,5 Hp
| Applications | |
| The IPT Self-priming Two-stage High Pressure Engine Driven pump includes precision cast high efficiency impellers to maximize performance and pressure. Cast iron diffusers for durability and extended life. Aluminum construction and heavy duty powder coated steel frame allows portability for use in many applications. This pump features cast iron male NPT ports, silicon carbide mechanical seals, EPDM/EPR O-rings and gaskets, built-in flapper/check valve and wrench for easy service of the pump. This unit is ideal for fire protection, emergency fire fighting, washdown and AG/sprinkler applications. | |
| Features | |
| Maximum Temperature 200 F | |
| Models 2MP9/2MP13 meet or exceeds US Coast Guard Fire Pump Performance Requirement as specified by 46 CFR 27.301 | |
| Cast Aluminum Construction with Cast Iron Diffusers | |
| High Efficiency Two-Stage Precision Cast Aluminum Impellers | |
| Three-Way Cast Iron Discharge Port | |
| Viton Mechanical Seal with Silicon Carbide and Carbon Faces | |
| Heavy Duty Steel Roll Frame Included | |
Specifications | |
Brand |
AMT |
Catalog Number |
2MP5HR |
Type |
High Pressure/Fire Pumps |
Series |
Engine Driven Two Stage High Pressure/Fire Pumps |
Curve |
A |
Driver |
Honda GX160 |
Seal Type & Elastomer/Faces |
Viton Silicon Carbide/Carbon & EPDM/EPR O-rings, Gasket & Flapper/Check Valve |
Run Time (Hr.) |
2 |
Tank Size (Gal/Ltr) |
0.82/3.1 |
Ship Wt. (Lbs.) |
90 |
HP Class |
5 HP |
Suction |
2"
|
Discharge |
3-Way |
Length |
24.0" |
Width |
19.2" |
Height |
18.6" |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
