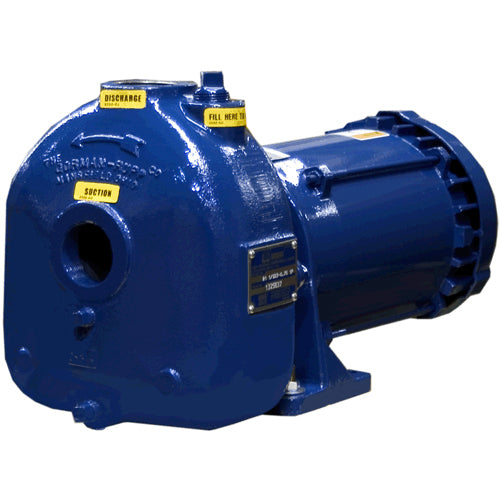

2D3-X2-1P AMT Self-Priming Pump w/ Explosion Proof Motor (2 HP, 115/230 Volt, 1 Phase, 2" Suction, 2" Discharge, Gray Iron Construction)

2D3-X2-1P AMT Self-Priming Pump w/ Explosion Proof Motor (2 HP, 115/230 Volt, 1 Phase, 2" Suction, 2" Discharge, Gray Iron Construction)

[COUNT] shoppers are looking at this right now

2D3-X2-1P

$3,401.33 USD
$5,102.00 USD $3,401.33 USD
Sale Sold out
Shipping calculated at checkout.

AMT 02D3-X2-1P, Self-Priming Pumps Coupled to Explosion Proof Motors,2
Applications
This line of Gorman-Rupp self-priming centrifugal pumps are coupled to an hazardous duty explosion proof motor. These pumps are designed for use in hazardous environments and/or for handling flammable liquids. 1-1/2" and 2" NPT port sizes available with single or three phase motors. All models are self-priming and are equipped with Viton seals with carbon and Ni-resist faces capable of handling liquids with temperatures to 160 F. Maximum flow to 128 GPM and maximum operating pressure to 31 PSI.
Features
Cast Iron Construction
Viton Seals with Carbon and Ni-resist Faces
1-1/2" & 2" NPT Port Sizes
Maximum Temperature 160 F
Solids Handling to 3/8" Diameter
Self-priming to 20 ft.
Single to Three Phase 3450 RPM Motors

Specifications

Brand
AMT
Catalog Number
2D3-X2-1P
Type
Explosion Proof Motors
Series
Self-Priming Pumps Coupled to Explosion Proof Motors
Curve
C
Suction
2"
Discharge
2"
Driver Type & HP
Elect. Motor 2 HP
Basic Construction
Gray Iron
Seal Type & Elastomer/Faces
Viton Carbon Ni-resist
VAC
115/230
Cycle
60 Cycle
Motor Enclosure
X-Proof
Ship Wt. (Lbs.)
101
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
