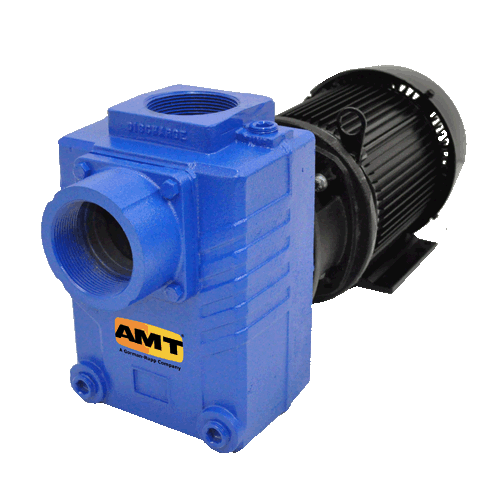

AMT Pumps 2875-95, 3" Self-Priming Centrifugal Pump (5 HP, 208-230/460V, 3 Phase, 3" Suction, 3" Discharge)
AMT Pumps 2875-95, 3" Self-Priming Centrifugal Pump (5 HP, 208-230/460V, 3 Phase, 3" Suction, 3" Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:2875-95
Regular price
$1,486.67 USD
Regular price
$2,230.00 USD
Sale price
$1,486.67 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 2875-95, 3" Self-Priming Centrifugal Pumps Series B Curve, 5,3,3 DIS
| Applications | |
| AMT Self-Priming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open stainless steel impeller, which can handle 3/8" diameter semi-solids. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. | |
| Features | |
| Cast Iron Construction with Stainless Steel Impeller | |
| Buna-N Mechanical Seal and O-ring | |
| 3" NPT Suction and Discharge Ports | |
| Stainless Steel Sleeve | |
| Dual Volute Design Reduces Radial Load on Motor | |
| Fill and Drain Plug for Easy Servicing | |
| Maximum Temperature 180 F | |
| Self-cleaning, Semi-open Impeller | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
2875-95
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
3" Self-Priming Centrifugal Pumps
|
|
Curve
|
B
|
|
HP
|
5
|
|
PH
|
3
|
|
Voltage @ 60 Hz +
|
208-230/460
|
|
Full Load Amps
|
14/7
|
|
Frame
|
184JM
|
|
SUC
|
3
|
|
DIS
|
3
|
|
L
|
26.6"
|
|
W
|
12.0"
|
|
H
|
11.8"
|
|
Ship Wt. (Lbs.)
|
173
|
|
Warranty
|
1 Year
|
|
Optional Mounting Base
|
Model A200-90
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
