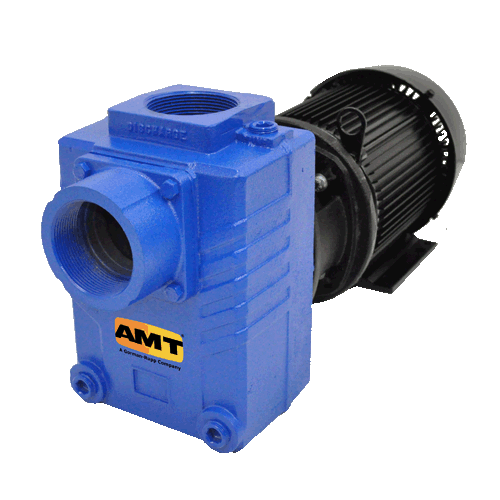

2874-95 AMT 3" Self-Priming Centrifugal Pump (3 HP, 208-230/460V, 3 Phase, 3"Suction, 3"Discharge)
2874-95 AMT 3" Self-Priming Centrifugal Pump (3 HP, 208-230/460V, 3 Phase, 3"Suction, 3"Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:2874-95
Regular price
$1,442.00 USD
Regular price
$2,163.00 USD
Sale price
$1,442.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 2874-95, 3" Self-Priming Centrifugal Pumps SerieS A Curve, 3,3,3 DIS
| Applications |
| AMT Self-Priming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open stainless steel impeller, which can handle 3/8" diameter semi-solids. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. |
| Features |
| Cast Iron Construction with Stainless Steel Impeller |
| Buna-N Mechanical Seal and O-ring |
| 3" NPT Suction and Discharge Ports |
| Stainless Steel Sleeve |
| Dual Volute Design Reduces Radial Load on Motor |
| Fill and Drain Plug for Easy Servicing |
| Maximum Temperature 180 F |
Specifications | |
Brand |
AMT |
Catalog Number |
2874-95 |
Type |
Centrifugal Pumps |
Series |
3" Self-Priming Centrifugal Pumps |
Curve |
A |
HP |
3 |
PH |
3 |
Voltage @ 60 Hz + |
208-230/460 |
Full Load Amps |
10/5 |
Frame |
182JM |
SUC |
3 |
DIS |
3 |
L |
26.6" |
W |
12.0" |
H |
11.8" |
Ship Wt. (Lbs.) |
149 |
Optional Mounting Base |
Model A200-90 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
