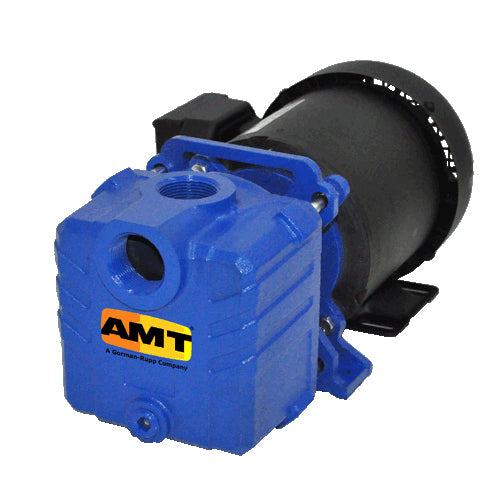

AMT Pumps 285G-95, 1-1/4" Self-Priming Centrifugal Pump (1 HP, 1 PH, TEFC, 115/230 V, 1-1/4" NPT , 1-1/4" NPT Discharge)
AMT Pumps 285G-95, 1-1/4" Self-Priming Centrifugal Pump (1 HP, 1 PH, TEFC, 115/230 V, 1-1/4" NPT , 1-1/4" NPT Discharge)
SKU:285G-95
Regular price
$530.52 USD
Regular price
$817.00 USD
Sale price
$530.52 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 285G-95, 1 HP, 1 PH, TEFC , 115/230 V, 1-1/4" NPT , 1-1/4" NPT Discharge
| Applications | |
| The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will selfprime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC (on center). Built-in carrying handle offers portability. | |
| Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; CALL FOR QUOTATION & LEAD TIME! | |
| Features | |
| Cast Iron Construction | |
| Buna-N Mechanical Seal and O-Ring with optional Viton? or Silicon Carbide Mechanical Seal and O-ring | |
| 1" & 1-1/4" NPT Suction and Discharge Ports | |
| Dual Volute Design Reduces Radial Load on Motor | |
| Maximum Working Pressure 75 PSI | |
| Maximum Temperature 180 F | |
| Single or Three Phase, ODP or TEFC Motors Available | |
| Self-cleaning, Semi-open Impeller | |
| QSP - Quick Ship Pump for Many Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
285G-95 |
Type |
Centrifugal Pumps |
Series |
1" & 1-1/4" Self-Priming Cast Iron Centrifugal Pumps |
Curve |
C |
HP |
1 |
PH |
1 |
ENC |
TEFC |
Voltage @ 60 Hz + |
115/230 |
Full Load Amps |
12/6 |
Suction |
1-1/4" NPT |
Discharge |
1-1/4" NPT |
L |
18.0 [45.7] |
W |
8.8 [22.6] |
H |
7.2 [18.3] |
Ship Wt. (Lbs.) |
50 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
