• 2855-95 AMT 1-1/4" Self-Priming Centrifugal Pump (1 HP, 1 PH, ODP , 115/230 V, 1-1/4"NPT Suction, 1-1/4"NPT Discharge) - KG Power Systems
1 1

AMT

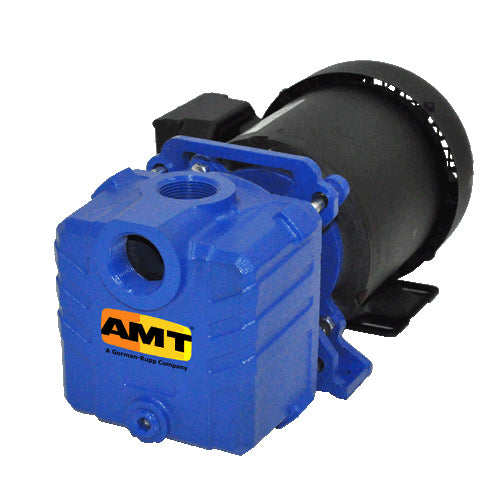

2855-95 AMT 1-1/4" Self-Priming Cast Iron Centrifugal Pump (1 HP, 1 Phase, ODP Enclosure, 115/230 Volt, 1-1/4"NPT Suction, 1-1/4"NPT Discharge, 82 Max GPM, 70' Max Head)

2855-95 AMT 1-1/4" Self-Priming Cast Iron Centrifugal Pump (1 HP, 1 Phase, ODP Enclosure, 115/230 Volt, 1-1/4"NPT Suction, 1-1/4"NPT Discharge, 82 Max GPM, 70' Max Head)

[COUNT] shoppers are looking at this right now

2855-95

$550.00 USD
$825.00 USD $550.00 USD
Sale Sold out
Shipping calculated at checkout.

AMT 2855-95, 1 HP, 1 PH, ODP , 115/230 V, 1-1/4" NPT , 1-1/4" NPT Discharge

Applications
The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will self-prime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC (on center). Built-in carrying handle offers portability.
Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; CALL FOR QUOTATION & LEAD TIME!
Features
Cast Iron Construction
Buna-N Mechanical Seal and O-Ring with optional Viton? or Silicon Carbide Mechanical Seal and O-ring
1" & 1-1/4" NPT Suction and Discharge Ports
Dual Volute Design Reduces Radial Load on Motor
Maximum Working Pressure 75 PSI
Maximum Temperature 180 F
Single or Three Phase, ODP or TEFC Motors Available
Self-cleaning, Semi-open Impeller
QSP - Quick Ship Pump for Many Models

Specifications

Brand
AMT
Catalog Number
2855-95
Type
Centrifugal Pumps
Series
1" & 1-1/4" Self-Priming Cast Iron Centrifugal Pumps
Curve
D
HP
1
Phase
1
Enclosure
ODP
Voltage @ 60 Hz +
115/230
Full Load Amps
17/9
Suction
1-1/4" NPT
Discharge
1-1/4" NPT
L
18.3 [46.5]
W
6.8 [17.7]
H
7.2 [18.3]
Ship Wt. (Lbs.)
47
Warranty
1 Year
Notes
See Support Documents


Support Documents (pdf)
