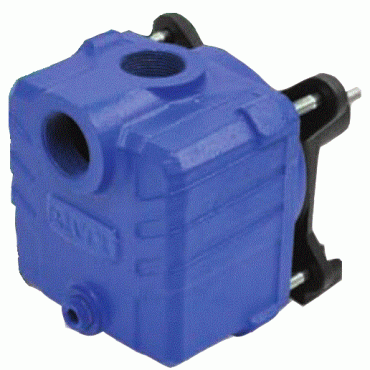

AMT Pumps 2850-99, 1-1/4" Cast Iron Centrifugal Pedestal Pump (3/16" 1" Keyway, 1.3" Impeller Length, 65 GPM, 68 Ft Head)
AMT Pumps 2850-99, 1-1/4" Cast Iron Centrifugal Pedestal Pump (3/16" 1" Keyway, 1.3" Impeller Length, 65 GPM, 68 Ft Head)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:2850-99
Regular price
$336.00 USD
Regular price
$504.00 USD
Sale price
$336.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 2850-99, Self-Priming Centrifugal Pedestal Pumps,1-1/4" NPT, Cast Iron
| Applications | |
| AMT Self-Priming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with Buna-N seals or stainless steel with Viton seals. Pumps are fitted with a self-cleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000. | |
| Features | |
| Cast Iron & Stainless Steel Construction | |
| Maximum Temperature: Buna-N: 180 F, Viton: 200 F | |
| Solids Handling to 3/8" Diameter | |
| Built-In Check Valve on 1-1/2" & 2" Models | |
| Self-priming up to 20 Ft. @ 3450 RPM | |
| Dual Volute Design Reduces Radial Load on Motor | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
2850-99
|
|
Type
|
Pedestal Pumps
|
|
Series
|
Self-Priming Centrifugal Pedestal Pumps
|
|
Curve
|
A
|
|
SUC
|
1-1/4" NPT
|
|
DIS
|
1-1/4" NPT
|
|
Keyway
|
3/16" 1"
|
|
Impeller Diameter
|
5/8"
|
|
Impeller Length
|
1.3
|
|
Max Solid Handling Capacity
|
3/8" Diameter |
|
Max GPM
|
65 GPM
|
|
Max Head
|
68 FT
|
|
Minimum BHP Required @ 3450 RPM
|
1
|
|
Construction Material
|
Cast Iron
|
|
Mechanical Seal Material
|
Buna-N
|
|
Motor
|
Not Included
|
|
Max Temp
|
180 Degrees F.
|
|
Ship Wt. (Lbs.)
|
23
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
