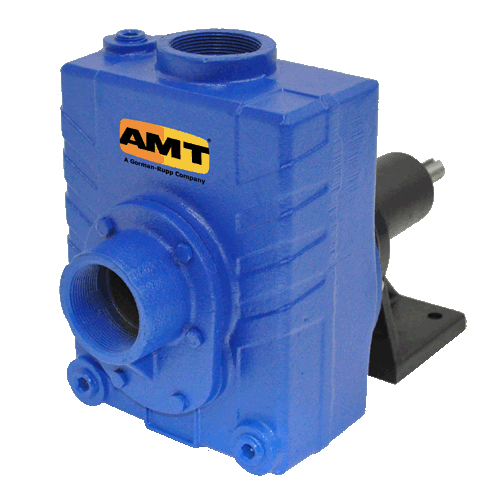

AMT Pumps 282P-95, 1-1/2" Cast Iron Centrifugal Pedestal Pump (1-1/2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 2.1" Impeller Length, 100 GPM)
AMT Pumps 282P-95, 1-1/2" Cast Iron Centrifugal Pedestal Pump (1-1/2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 2.1" Impeller Length, 100 GPM)
No reviews
SKU:282P-95
Regular price
$382.47 USD
Regular price
$589.00 USD
Sale price
$382.47 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 282P-95, Self-Priming Centrifugal Pedestal Pumps,1-1/2" NPT,Stainless Steel
| Applications | |
| AMT Self-Priming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with Buna-N seals or stainless steel with Viton seals. Pumps are fitted with a self-cleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000. | |
| Features | |
| Cast Iron & Stainless Steel Construction | |
| Maximum Temperature:Buna-N: 180 F, Viton: 200 F | |
| Solids Handling to 3/8" Diameter | |
| Built-In Check Valve on 1-1/2" & 2" Models | |
| Self-priming up to 20 Ft. @ 3450 RPM | |
| Dual Volute Design Reduces Radial Load on Motor | |
Specifications | |
Brand |
AMT |
Catalog Number |
282P-95 (Replaced 2820-99) |
Type |
Pedestal Pumps |
Series |
Self-Priming Centrifugal Pedestal Pumps |
Curve |
B |
Suction |
1-1/2" NPT |
Discharge |
1-1/2" NPT |
Keyway |
3/16" x 1-7/8" |
Impeller Diameter |
3/4" |
Impeller Length |
2.1" |
Max GPM |
100 |
Max Head |
95 FT |
Minimum BHP Required @ 3450 RPM |
2 |
Max Solid Handling Capacity |
3/8" Diameter |
Construction Material |
Cast Iron |
Motor |
Not Included. Pump Only
|
Ship Wt. (Lbs.) |
32 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
