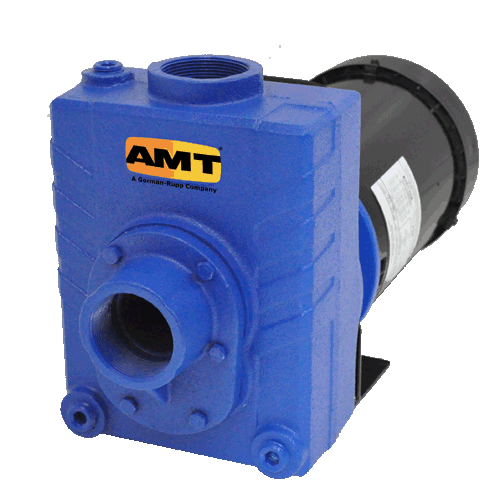

AMT Pumps 2766-95, 2" Cast Iron Self-Priming Centrifugal Pump (3 HP, 230/460V, 3 Phase, 2" Suction and Discharge)
AMT Pumps 2766-95, 2" Cast Iron Self-Priming Centrifugal Pump (3 HP, 230/460V, 3 Phase, 2" Suction and Discharge)
SKU:2766-95
Regular price
$765.58 USD
Regular price
$1,179.00 USD
Sale price
$765.58 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 2766-95, Self-Priming Centrifugal Pumps,3 HP, ODP,230/460 V, 3 PHASe
| Applications | |
| This line of AMT Self-Priming Centrifugal pumps is designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and processing. These pumps feature a self-cleaning clog resistant impeller capable of handling up to 3/8" diameter semisolids. Built-in flapper/check valve enables consistent self-priming to 20 feet. Dual volute design reduces radial load on motor. Stainless steel models are especially effective in applications where rust and/or corrosion can develop in systems and also are highly resistant to erosion and chemicals. | |
| Features | |
| Handles 3/8" Diameter Semi-solids | |
| NEMA 56J Motors with Stainless Steel Shaft | |
| Self-primes to 20 Ft. | |
| Self-cleaning, Clog Resistant Impeller | |
| Steel Base and Handle Included | |
| Dual Volute Design | |
| 3-Phase models can also operate on 50 Hz (This will change full load amps and service factor, RPM and priming capabilities). | |
Specifications | |
Brand |
AMT |
Catalog Number |
2766-95 |
Type |
Centrifugal Pumps |
Series |
Self-Priming Centrifugal Pumps |
| Construction | Cast Iron Construction with Buna-N Seals |
HP |
3 |
TYPE |
ODP |
FRAME |
56J |
Full Load Amps |
9/5 |
VAC/60 Hz |
230/460 |
Phase |
3 |
Inlet |
2" |
Outlet |
2" |
SHIP WT (Lbs.) |
75 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
