2761-99 AMT 2" Stainless Steel Centrifugal Pedestal Pump (2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 2.1" Shaft Length, 120 GPM)
2761-99 AMT 2" Stainless Steel Centrifugal Pedestal Pump (2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 2.1" Shaft Length, 120 GPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:2761-99
Regular price
$1,426.00 USD
Regular price
$2,139.00 USD
Sale price
$1,426.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

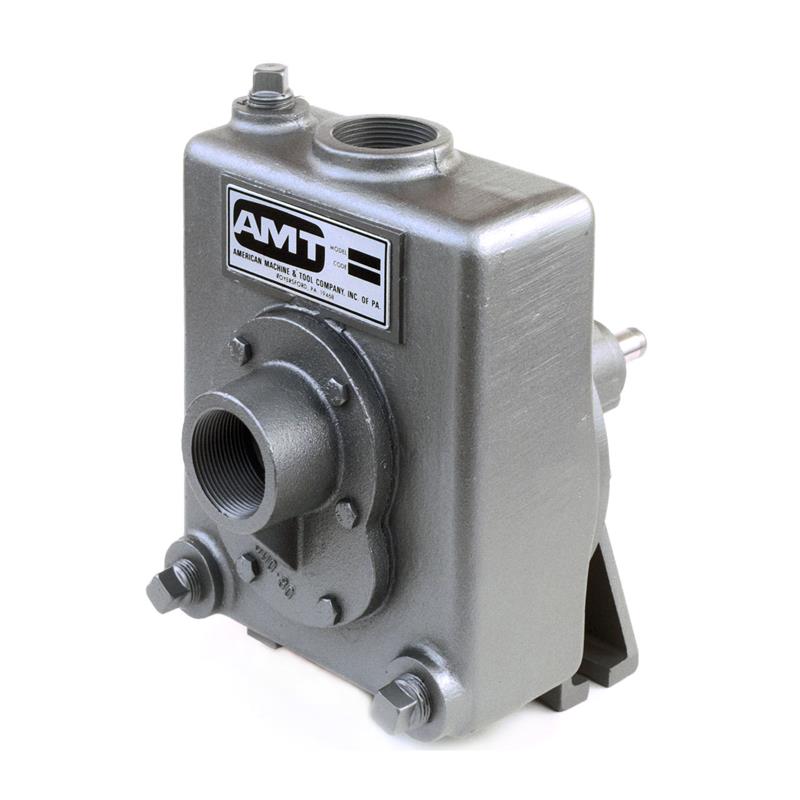

AMT 2761-99, Self-Priming Centrifugal Pedestal Pumps,2" NPT,Stainless Steel
| Applications | |
| AMT Self-Priming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with Buna-N seals or stainless steel with Viton seals. Pumps are fitted with a self-cleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000. | |
| Features | |
| Cast Iron & Stainless Steel Construction | |
| Maximum Temperature:Buna-N: 180 F, Viton: 200 F | |
| Solids Handling to 3/8" Diameter | |
| Built-In Check Valve on 1-1/2" & 2" Models | |
| Self-priming up to 20 Ft. @ 3450 RPM | |
| Dual Volute Design Reduces Radial Load on Motor | |
Specifications | |
Brand |
AMT |
Catalog Number |
2761-99 |
Type |
Pedestal Pumps |
Series |
Self-Priming Centrifugal Pedestal Pumps |
Curve |
C |
SUC |
2" NPT |
DIS |
2" NPT |
Keyway |
3/16" x 1-7/8" |
Shaft Diameter |
3/4" |
Shaft Length |
2.1" |
Max GPM |
120 |
Max Total Head |
95 FT |
Solid Handling |
3/8" |
Minimum BHP Required @ 3450 RPM |
3 |
Construction Material |
Stainless Steel |
Impeller |
Stainless Steel |
Ship Wt. (Lbs.) |
48 |
Warranty |
1 Year |
Motor |
NOT INCLUDED - Pump End Only |
Notes |
See Support Documents |
Pump Curves |
Click on the link below |
Support Documents (pdf) |
