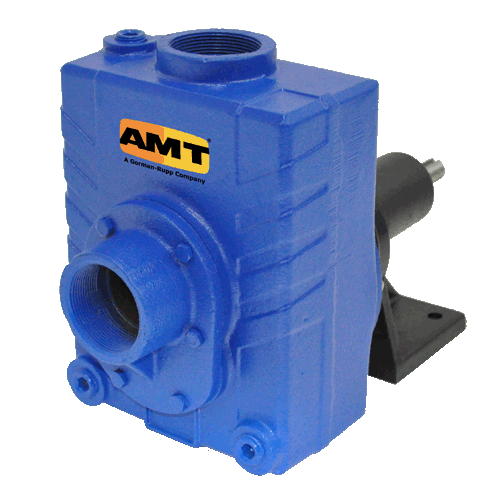

AMT Pumps 2760-99, 2" Cast Iron Centrifugal Pedestal Pump (2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 1.1" Impeller Length, 120 GPM)

AMT Pumps 2760-99, 2" Cast Iron Centrifugal Pedestal Pump (2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 1.1" Impeller Length, 120 GPM)

👁️ [COUNT] People are currently viewing this product.

2760-99

$498.00 USD
$747.00 USD $498.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 2760-99, Self-Priming Centrifugal Pedestal Pumps,2" NPT,Cast Iron
Applications
AMT Self-Priming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with Buna-N seals or stainless steel with Viton seals. Pumps are fitted with a self-cleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000.
Features
Cast Iron & Stainless Steel Construction
Maximum Temperature:Buna-N: 180 F, Viton: 200 F
Solids Handling to 3/8" Diameter
Built-In Check Valve on 1-1/2" & 2" Models
Self-priming up to 20 Ft. @ 3450 RPM
Dual Volute Design Reduces Radial Load on Motor

Specifications

Brand
AMT
Catalog Number
2760-99
Type
Pedestal Pumps
Series
Self-Priming Centrifugal Pedestal Pumps
Curve
C
Suction
2" NPT
Discharge
2" NPT
Keyway
3/16" x 1-7/8"
Impeller Diameter
3/4"
Impeller Length
1.1"
Minimum BHP Required @ 3450 RPM
3
Max Solids Handling Capacity
3/8" Diameter
Max GPM
120
Max Total Head
95 FT
Construction Material
Cast Iron
Ship Wt. (Lbs.)
48
Motor
NOT INCLUDED. PUMP ONLY.
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
