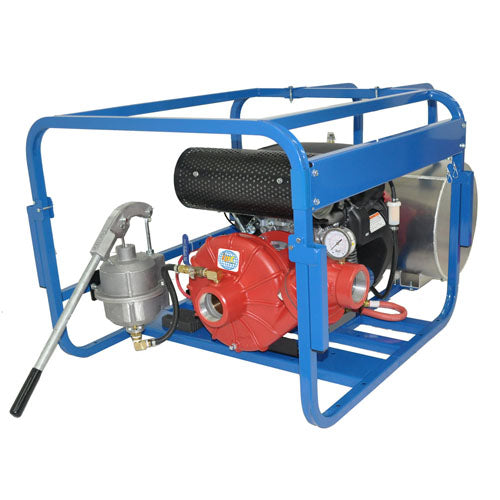

AMT Pumps 25FP23HR, 2-1/2" Engine Driven Fire Pump (23 HP, Honda GX690, Electric Start)

Applications
The IPT Engine Driven line of High Pressure/Fire pumps deliver excellent pressure and flow for use in many applications including: fire protection, emergency fire fighting, washdown and AG/Sprinkler. Portable units feature metal fuel tanks installed on engine or frame depending on model. 12 Volt DC electric start engines with recoil starter from Briggs & Stratton Vanguard, Honda Gasoline or Yanmar Diesel engines are standard on these pumps. Vanguard models feature built-in exhaust prime. Honda and Yanmar models feature a manual hand prime. These pumps are equipped with Viton Silicon Carbide/Carbon seal and Viton O-rings/gaskets.
Features
Aluminum Construction with Replaceable Hard Coat Anodized Wear Ring
Viton Mechanical Seal with Silicon Carbide & Carbon Faces
Built-in Discharge Check Valve
Discharge Pressure Gauge Included
Maximum Temperature 200 F
Heavy Duty Steel Roll Frame with Battery Tray Included

Specifications

Brand
AMT
Catalog Number
25FP23HR
Type
High Pressure/Fire Pumps
Series
Engine Driven High Pressure/Fire Pumps
Curve
B
Driver
Honda GX690
Seal Type & Elastomer/Faces
Viton Silicon Carbide/Carbon
Prime Feature
Hand
Tank Size (Gal/Ltr)
15/56.8
Run Time (Hr.)
10.5
Ship Wt. (Lbs.)
220
HP Class
23 HP
Oil Alert
Included
Electric Start
Included
Suction
2-1/2" NPT
Discharge
2-1/2" NPT
Length
46.90"
Width
31.6"
Height
25.1"
Warranty
1 Year
