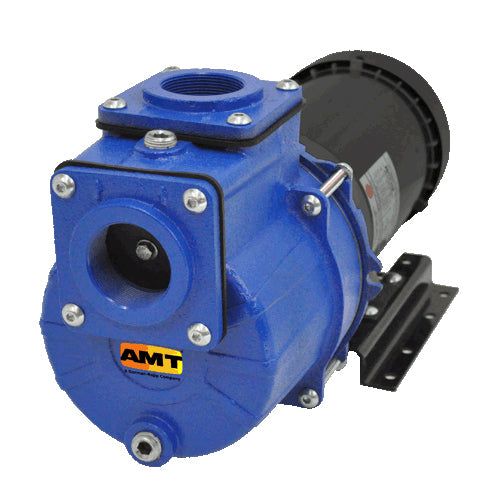

AMT Pumps 1SP05C-3P, 1" Self-Priming Chemical Pump (1/2 HP, 3 Phase, 208-230/460V, TEFC, 1" Suction, 1" Discharge, Cast Iron)
AMT Pumps 1SP05C-3P, 1" Self-Priming Chemical Pump (1/2 HP, 3 Phase, 208-230/460V, TEFC, 1" Suction, 1" Discharge, Cast Iron)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:1SP05C-3P
Regular price
$623.33 USD
Regular price
$935.00 USD
Sale price
$623.33 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 1SP05C-3P, 1/2 HP, 3 PH, 208-230/460 V, 1" NPT, Cast IronEPDM/EPR
| Applications | |
| This line of AMT Self-Priming Centrifugal pumps is designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and chemical processing. These pumps feature a self-cleaning clog resistant impeller capable of handling up to 3/8" diameter semi-solid and EPDM/EPR seals for liquid chemical transfer with specific gravities up to 1.2. (Verify chemical capability with liquids) Built-in check valve enables consistent self-priming to 20 feet. Dual volute design reduces radial load on motor. Pumps feature Dual cycle 50/60 Hz TEFC motors. | |
| Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; CALL FOR QUOTATION & LEAD TIME! | |
| Features | |
| Cast Iron Construction with EPDM/EPR Mechanical Seals | |
| Built-in Check Valve for Fast PrimingFast Priming | |
| NEMA 56J Motors with Stainless Steel Shafts | |
| Maximum Working Pressure 125 PSI | |
| Available in Dual 50/60 Hz TEFC, Single or Three Phase Motors | |
| Self-primes to 20 Ft. | |
| Self-cleaning, Clog Resistant Impellers | |
| Designed to handle liquids of specific gravities up to 1.3 | |
| Do Not Use With Petroleum Based Liquids! | |
| QSP Quick Ship for Many Models | |
Specifications | |
Brand |
AMT |
Catalog Number |
1SP05C-3P |
Type |
Chemical Pumps |
Series |
1"-2" Self-Priming Chemical Pumps |
Curve |
A |
HP |
1/2 |
PH |
3 |
ENC |
TEFC |
Voltage @ 60 Hz + |
208-230/460 |
Full Load Amps |
3/2 |
Suction (inch.) |
1" |
Discharge (inch.) |
1" |
Casing |
Cast Iron |
Shaft Seal |
EPDM/EPR |
L |
17.3" |
W |
9.3" |
H |
9.3" |
Ship Wt. (Lbs.) |
52 |
Maximum Solids Handling Capacity |
1/4" |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
