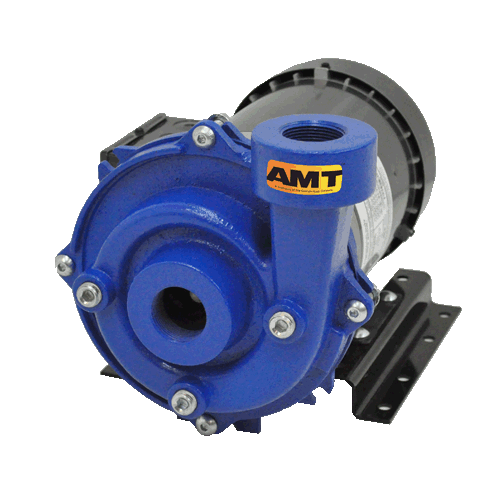

AMT Pumps 15ES20C-3P Straight Centrifugal Pump (2 HP, 3 Phase, 208-230/460V)

AMT Pumps 15ES20C-3P Straight Centrifugal Pump (2 HP, 3 Phase, 208-230/460V)

15ES20C-3P

$605.84 USD
$933.00 USD $605.84 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 15ES20C-3P, Straight Centrifugal End Suction Chemical Pump,2 HP, 3 PH, 208-230/460 V, 1" NPT
Applications
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling.
Features
Cast Iron Construction
EPDM/EPR Mechanical Seal and O-rings
303 Stainless Steel Motor Shaft
NEMA 56J TEFC Single or Three Phase Motors
NEMA Dual Cycle 50/60 Hz Base Mounted Motor
Self-cleaning Impeller
Discharge Rotates in 45 Increments
Maximum Working Pressure 125 PSI
Maximum Temperature 180 F
Front Drain Plugs
QSPQuick Ship Pump for Many Models

Specifications

Brand
AMT
Catalog Number
15ES20C-3P
Type
Chemical Pumps
Series
Straight Centrifugal End Suction Chemical Pump
Curve
E
HP
2
Phase
3
Enclosure
TEFC
Voltage
208-230/460
Full Load Amps
7/4
Suction
1-1/2" NPT
Discharge
1-1/2" NPT
Length
15.9"
Width
10.3"
Height
9.8"
Ship Wt. (Lbs.)
59
Warranty
1 Year
Notes
See Support Documents
