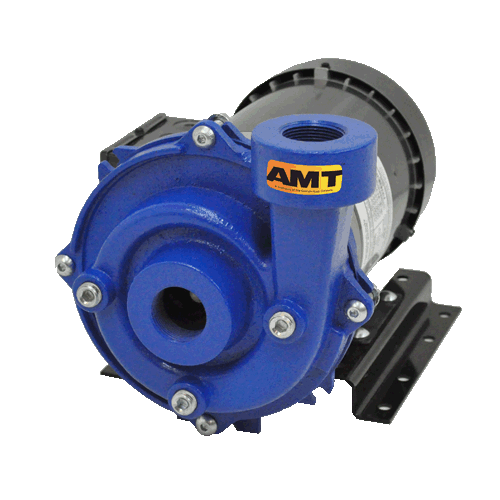

12ES15C-1P AMT Straight Centrifugal End Suction Chemical Pump (1 HP, 1 Phase, 115-208/230 Volt, TEFC Enclosure, EPDM/EPR Seal, Cast Iron)

12ES15C-1P AMT Straight Centrifugal End Suction Chemical Pump (1 HP, 1 Phase, 115-208/230 Volt, TEFC Enclosure, EPDM/EPR Seal, Cast Iron)

[COUNT] shoppers are looking at this right now

12ES15C-1P

$623.33 USD
$935.00 USD $623.33 USD
Sale Sold out
Shipping calculated at checkout.

AMT 12ES15C-1P, Straight Centrifugal End Suction Chemical Pump,1 HP, 1 PH, 115-208/230 V, 1" NPT
Applications
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling.
Features
Cast Iron Construction
EPDM/EPR Mechanical Seal and O-rings
303 Stainless Steel Motor Shaft
NEMA 56J TEFC Single or Three Phase Motors
NEMA Dual Cycle 50/60 Hz Base Mounted Motor
Self-cleaning Impeller
Discharge Rotates in 45 Increments
Maximum Working Pressure 125 PSI
Maximum Temperature 180 F
Front Drain Plugs
QSPQuick Ship Pump for Many Models

Specifications

Brand
AMT
Catalog Number
12ES15C-1P
Type
Chemical Pumps
Series
Straight Centrifugal End Suction Chemical Pump
Curve
D
HP
1
Phase
1
Enclosure
TEFC
Voltage
115-208/230
Full Load Amps
22/11
Suction
1-1/4" NPT
Discharge
1-1/4" NPT
Length
15.6"
Width
10.3"
Height
9.9"
Ship Wt. (Lbs.)
64
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
