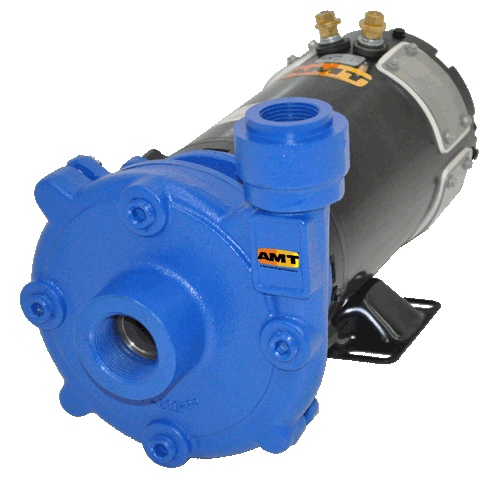

AMT Pumps 12DC-95, 12 Volt DC Washdown Pump (7/8 HP, 12VDC, 1-1/4" Inlet, 1" Outlet, 56 GPM, 35 PSI, 3500 RPM)
AMT Pumps 12DC-95, 12 Volt DC Washdown Pump (7/8 HP, 12VDC, 1-1/4" Inlet, 1" Outlet, 56 GPM, 35 PSI, 3500 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:12DC-95
Regular price
$1,652.00 USD
Regular price
$2,478.00 USD
Sale price
$1,652.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 12DC-95, STRAIGHT CENTRIFUGAL ELECTRIC DRIVEN PUMPS , 7/8 HP, 1-1/4x1 IN/OUT, 12 VDC , Cast Iron CASING, Buna-N SHAFT SEAL,
| Applications |
| AMT 12 Volt DC Washdown pumps are designed for OEM, chemical processing septic service, pumper and marine applications requiring a DC motor. The motor has a one hour duty rating and is furnished with a stainless steel shaft. This washdown duty pump is available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy servicing without disturbing any piping. Stainless Steel impeller maximizes performance. PUMPS ARE NOT SELF PRIMING AND REQUIRE FLOODED SUCTION. Premium 12 Volt DC washdown duty motors are built to handle washdown and damp/wet environments. The motor features epoxy paint, condensate drains, interior coating to protect against moisture or corrosion, special shaft seals to retard water, 12 Volt DC stud connections with o-ring seals, oversized brushes assuring longer brush life and base mount. UNITS ARE NOT SUBMERSIBLE IN LIQUIDS. |
| Features |
| 300 Series Investment Cast Stainless Steel and Cast Iron with Stainless Steel Impeller Construction |
| Discharge Port Rotates in 90 Degree Increments |
| (4) Front Drain Plugs |
| 7/8 HP 12 Volt DC Premium Washdown Duty Motor for Severe and Damp/Wet Operating Conditions |
| 12DC-95 is capable of running with a battery or AC/DC converter, neither come with the pump. |
| Model 12DC-95 Superseded model 489G-95 |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
12DC-95
|
|
Type
|
12 VOLT DC HIGH HEAD WASHDOWN PUMPS
|
|
Series
|
STRAIGHT CENTRIFUGAL ELECTRIC DRIVEN PUMPS
|
|
HP
|
7/8
|
|
IN/OUT
|
1-1/4x1
|
|
VAC/60 Hz
|
12 VDC
|
|
CASING
|
Cast Iron
|
|
SHAFT SEAL
|
Buna-N
|
|
IMPELLER
|
Stainless Steel
|
|
SHIP WT
|
57
|
|
OPTIONAL MOUNTING BASE
|
A201-90
|
|
LENGTH
|
15.5"
|
|
WIDTH
|
7.9"
|
|
HEIGHT
|
8.5"
|
|
MAX SOLIDS
|
3/16" Diameter
|
|
MAX FLOW
|
56 GPM
|
|
MAX HEAD
|
80 FT.
|
|
MAX PSI
|
35
|
|
SUCTION
|
1-1/4"
|
|
DISCHARGE
|
1"
|
|
RPM
|
3500
|
|
Old Model #
|
489G-95
|
|
WARRANTY
|
1 Year
|
|
NOTES
|
See Support Documents
|
|
Support Documents (pdf)
|
